Robotic Laser Welding Machine
Automated, Efficient, and Highly Flexible Robotic Laser Welding for Industrial Applications
Unlock the Power of Robotic Laser Welding
Our Robotic Laser Welding Machine integrates a high-performance fiber laser with a 6-axis robotic arm, delivering precise and consistent welds on complex 3D structures. Ideal for automated production lines in automotive, aerospace, metal fabrication, and more.

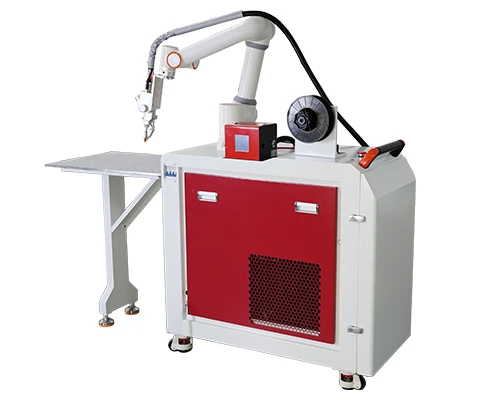

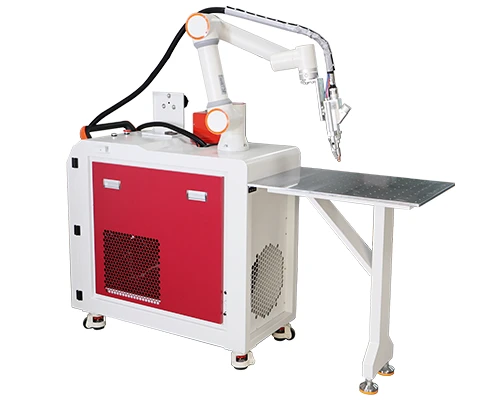

Robotic Laser Welder

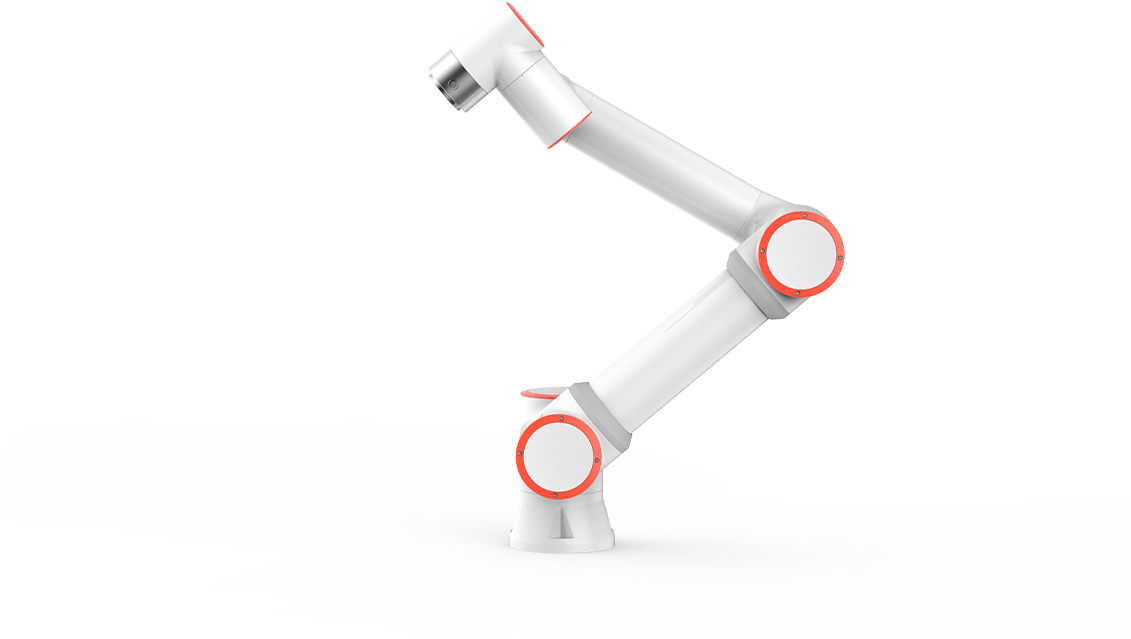

6-Axis Robot Arm
Enables flexible welding from any angle, perfect for intricate and hard-to-reach parts.
Smart Welding Path Programming
Supports offline programming and real-time path adjustment for complex welding tasks.
Seamless Automation
Easily integrates into automated production lines, improving throughput and consistency.

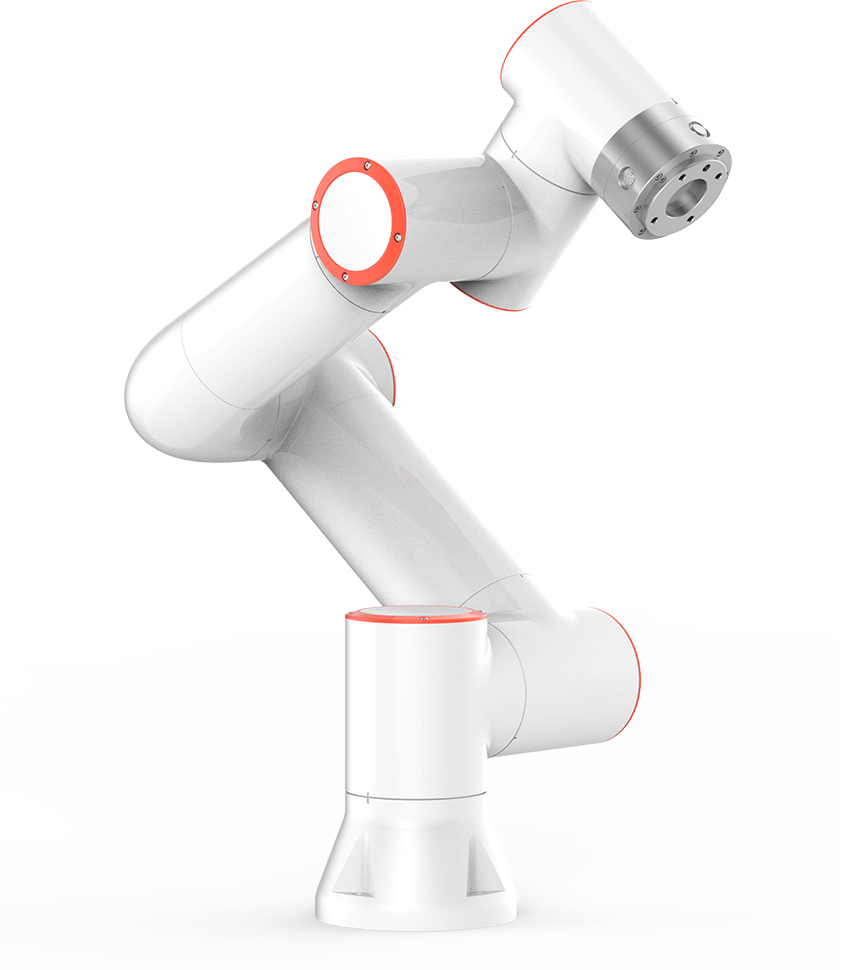

Robot technical parameters
| Payload weight | 5kg |
| Working radius | 922mm |
| Repeat positioning accuracy | ±0.02mm |
| Degrees of Freedom | 6 revolute joints |
| Base diameter | 149mm |
| Operating temperature | 0-45℃ |
Robotic laser welding machine application
Laser Welding Sample Display
Traditional Welding VS Laser Welding
| PROJECT | TIG/MIG | Laser welding machine |
| Labor cost | Difficult to recruit and high salary | Simple operation and low labor cost |
| Disease | Frequent occupational diseases and serious physical injuries | Less radiation, only need protective glasses to filter strong light |
| Speed | Slow speed, low efficiency | 4-10 times faster than traditional welding |
| Hot zone | Large | Small |
| Deformation | Easy to deform | Not easy to deform |
| Quality | The weld is thick and irregular, and needs polishing | Fine and beautiful welds, high welding strength |
| Damage | There is air hole and it is easy to weld through | Welding is uniform and consistent |
| Application | Limited by consumables | Wide application range |
| Master | Professional welders are required | 30 minutes of learning can be mastered skillfully |
Technical Parameters
| Model | TR-HLW |
| Laser wavelength | 1080nm |
| Working mode | Continuous &pulse |
| Output power | 1500W/2000W/3000W |
| Input voltage | 220V |
| Swing width | 0~5mm |
| Cleaning width | 80mm |
| Swing frequency | 1~30Hz |
| Welding gun interface | QBH |
