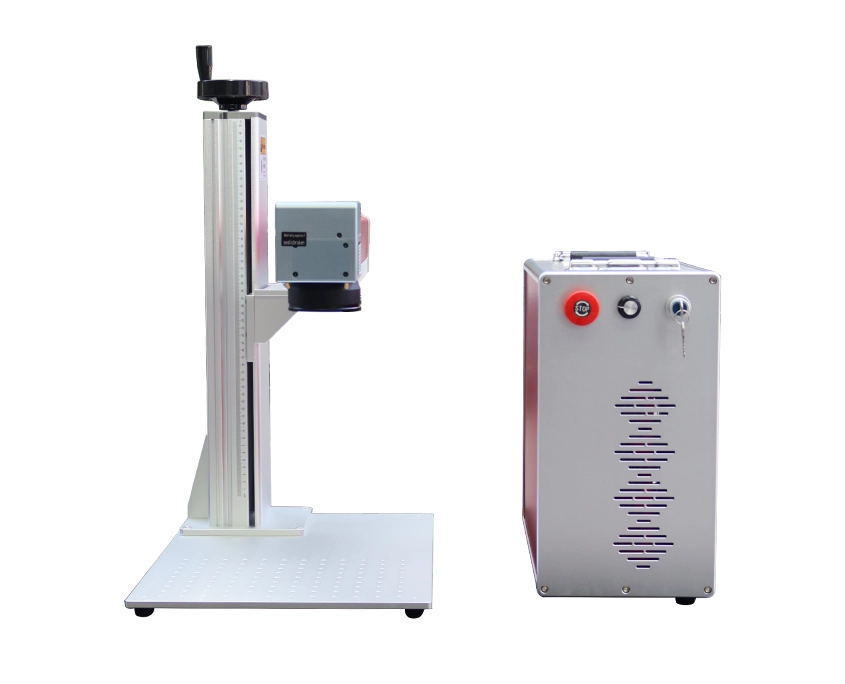

MOPA Fiber Laser Marking Machine
Ultra-Fine, High-Speed, Color Marking for Industrial Production

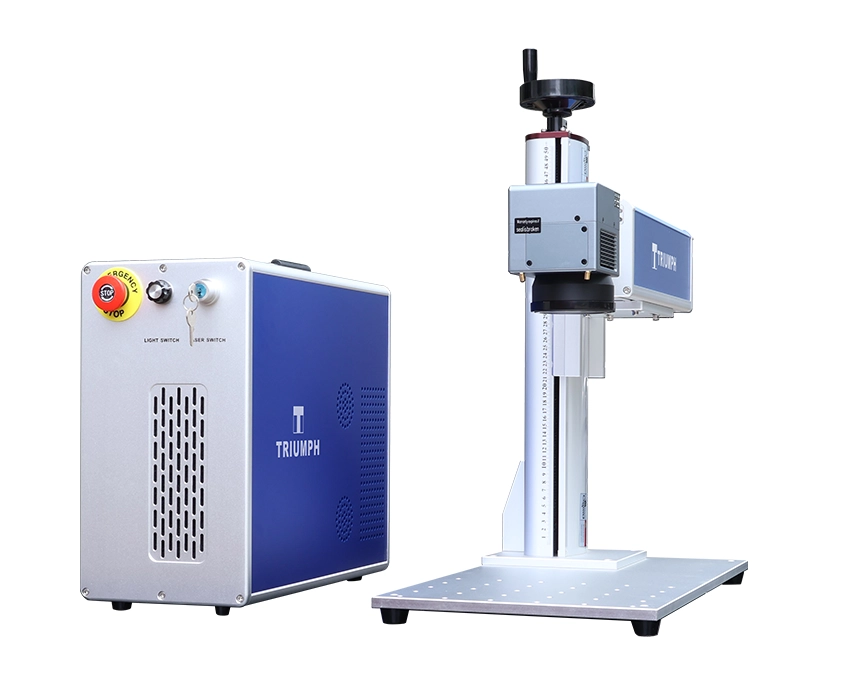

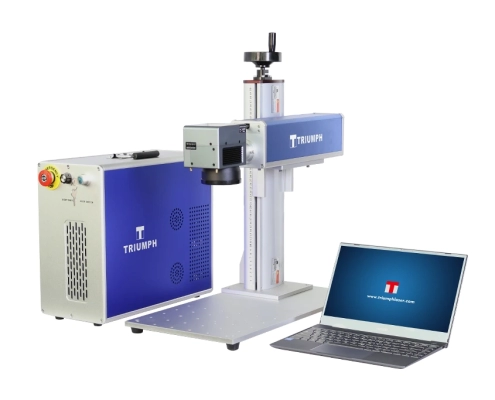

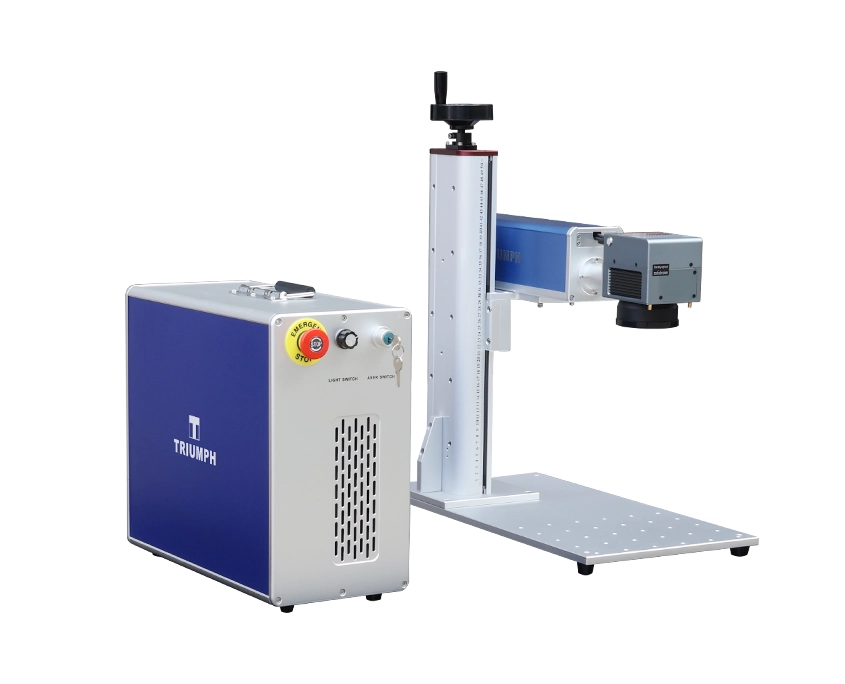

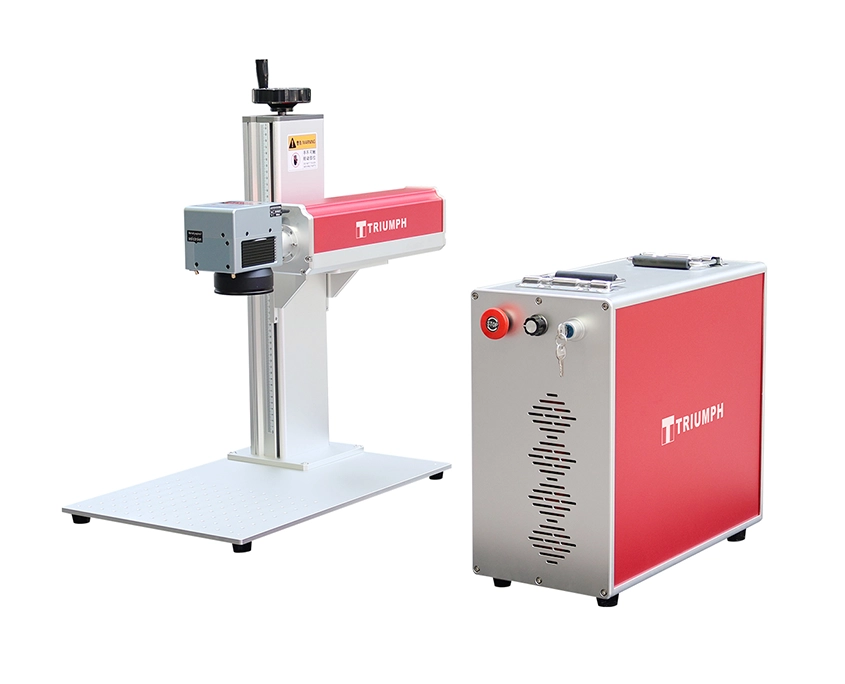

Mopa Laser Marking Machine
Mopa laser marking machine more possibilities for marking metals and plastics.Mopa laser marking machine can also mark plastics higher-contrast and more legible results, mark (anodised) aluminum in black or create reproducible colours on steel. Expand your possibilities when marking metals and plastics.In addition, you can produce qualitatively equivalent markings with the MOPA laser often faster than with the conventional fiber laser.
With the MOPA laser, the pulse durations can be set to predefined values between 4 and 200 ns. The MOPA laser is one of the most flexible lasers on the market and can be used for many applications: With respect to pulse duration, it can simulate the properties of conventional fiber lasers (relatively long pulses) and those of classical solid state lasers (relatively short pulses) such as Nd:YAG or Nd:YVO4 (vanadate).
Features of The Mopa Laser Marking Machine
Low costs of maintenance
The built-in fiber laser source is practically maintenance free and absolutely reliable. The energy consumption of the laser markers is very low. Costs for consumables, spare parts or laser machine maintenance do not incur.
High-speed laser marking
The Portable laser marking machine has been developed for marking large quantities of small- to medium-sized parts. The laser marking machine is able to mark pens, usb-sticks or data plates in only a few seconds.
Simple operation
The software supports almost all common file formats, do not need to understand any programming language, simply set a few parameters can start marking.

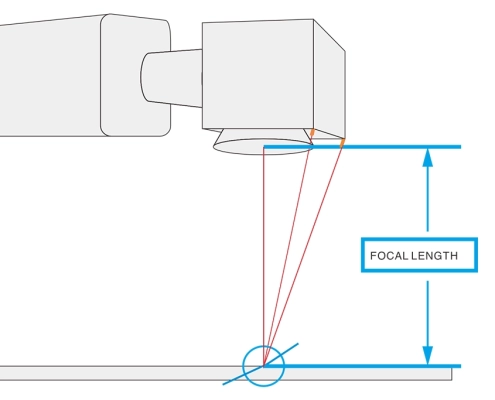

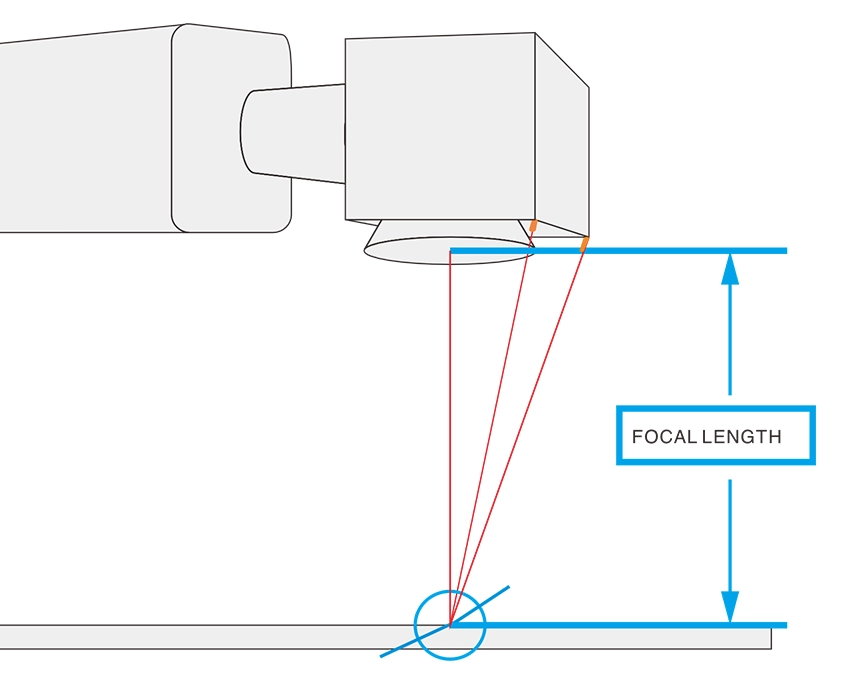

Three red light focusing
Three red light to help you easily be able to align the correct focal length，Only need to adjust the height of the table until the three red light coincidence.
Free of Maintenance
fiber laser marking system can be used for 8-10 years without any consumables and no need to adjust the laser path
Higher Accuracy
Fiber laser can reach unto 0.001mm precision, while diode only 0.01mm.
Foot switch
A large number of repeated marking the same object, do not need to use the computer every time to start marking, just press the foot switch can be

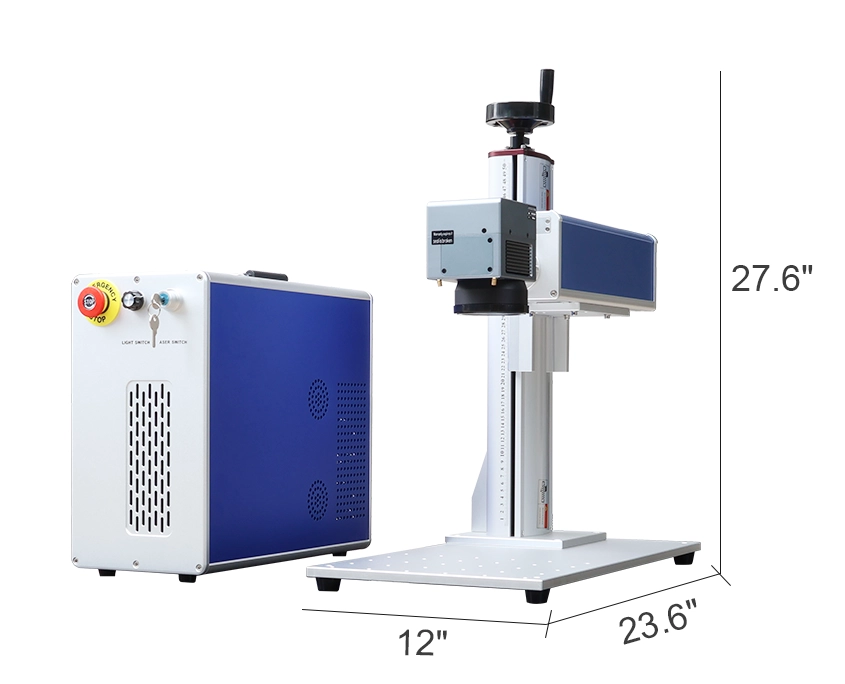

Occupies small place
The machine size is only the host computer so big, you can put any place you want to put, very convenient
Machine Application Scope And Materials
Electronic and communication products, IC products, electric lines, cable computer components and electric appliance.Every kind of precision parts,hardware tools,instrument appliance,aviation and spaceflight appliance.Jewelry, garments, instruments, gifts, office devices, brand scutcheon, sanitary ware appliance.Dishware ,food ,drinking,smoking and alcohol,etc.
Sample Display
Advantages of The Mopa Laser Marking Machine
For short pulses and lower pulse energy, the material is e.g. heated less and the area of the heat affected zone is reduced. This results in more advantages and possibilities for laser marking metals and plastics:
- Less burning/melting in the edge area of metal engravings
- Less heat development during annealing markings on metal, which leads to a better corrosion behavior
- More homogeneous and sometimes higher-contrast markings on some plastics
- Less foaming with plastics
How It Works
We have some laser marking videos to help you understand how it works
Standard Accessories
Technical Parameters
| Laser Power | 20W/30W/60W |
| Working Area | 70X70mm/110X110mm/150X150mm |
| Laser Wavelength | 1064nm |
| Frequency | 1~4000KHz |
| Graphic Format Supported | bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. |
| Laser Module Life | >100,000 hours |
| Power Supply | 220V±10% 50HZ or 110V±10% 60HZ |
| Marking Depth | adjustable according to materials |
| Color Separation | Yes |
Frequently Asked Questions
What the fiber laser marking machine can do?
The fiber laser marking machine has a great advantage for the hard, brittle and dark material marking. It is said that most of the metal materials, non-metallic materials and plastic part specific, fiber laser marking machine can make ;Fiber laser marking machine is widely used in all walks of life,As long as it is needed to do identification marking machine are required,Fiber laser marking machine with its low cost and cost of use, efficient production capacity, as well as a strong function ，Favored by all walks of life.
How to maintain the machine？
In addition to the need for stable voltage, regular cleaning of the focus lens, this machine does not require any maintenance
How long can I receive the machine?
You can receive the machine within a week, depending on the actual logistics time
How long can the machine be used?
The life time of fiber laser source is 100000 hours
