Model | H20B/H30B(Lithium battery style) H20M/H30M(Power supply style) |
Machine material | Engineering plastic |
Laser type | Optical Fiber Laser Generator |
Laser power | 20W/30W |
Laser wavelength | 1064nm |
Maximum pulse energy | 0.7mJ/1mJ/ |
Frequency adjustable range | 27-170kHz |
Print way | High-precision two-dimensional scanning mode |
Scaling speed | ≤7000mm/s |

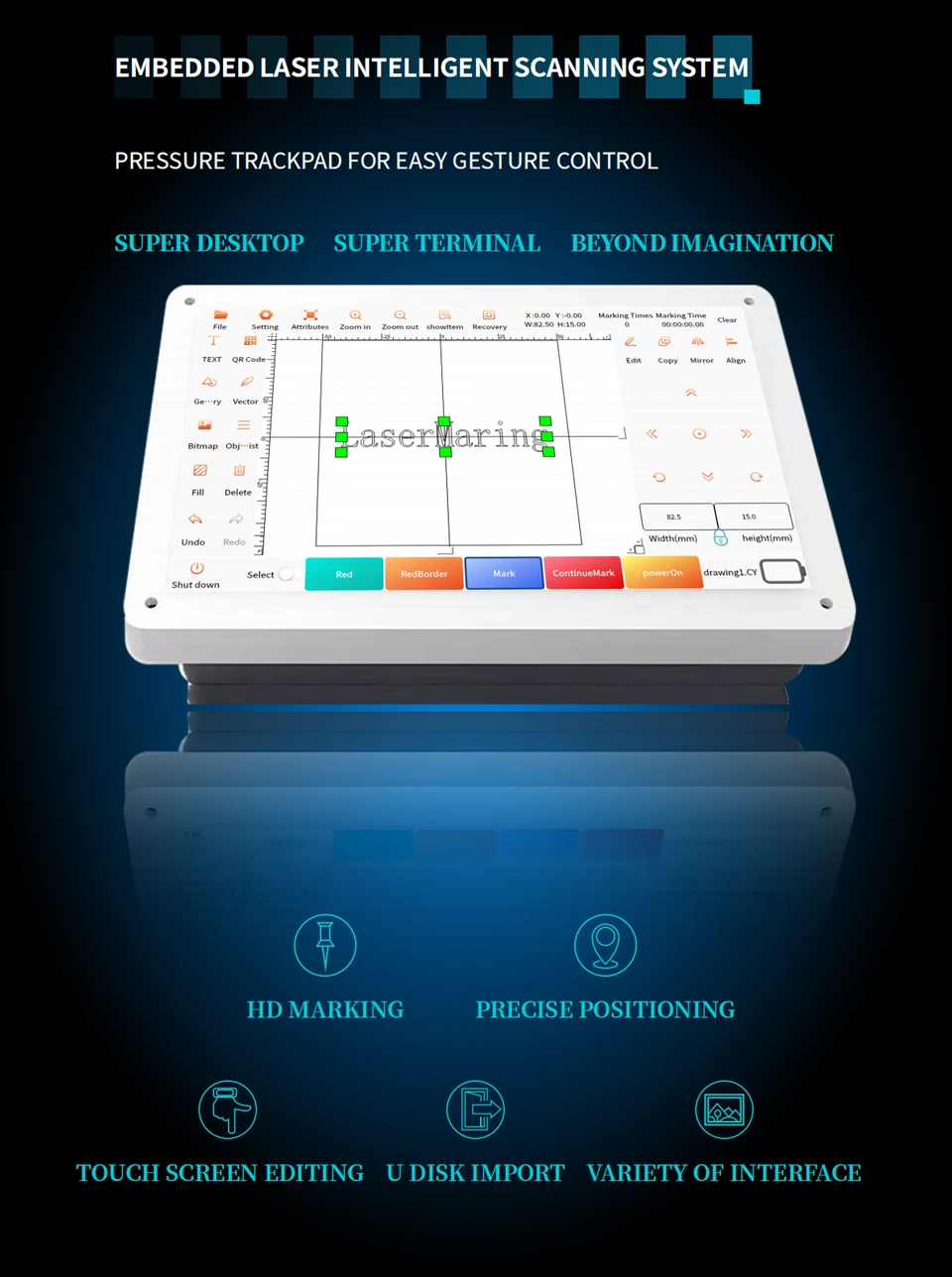

Operation interface | Built-in 7-inch touchscreen, Linux operating system |
Cooling method | Built-in air cooling |
Type of marking line | lattice and vector all-in-one machine(both lattice and vector) |
Reflector size | Standard:10mm |
Scope of marking | 100mmx100mm |
Location mode | Red light positioning |
Number of scaled characters | Any row within the marking range |
Printout rate | 600 Character/second(specific speed is related to product material, print content) |
Language | Simplified Chinese, English, Korean, German, Arabic numerals, ect |
File format | png、jpg、bmp、dxf、plt、svg |
Barcode/QR code | CODE 25, CODE 39, CODE 49, CODE 93, CODE 126, CODE 128,EAN 13, EAN 128, PDF 417, COD BAR, UP CA, UP CA_CHK,UP CE_CHK.Data Matrix.QR Code etal |
Source | 220V/110V |
Maximum power consumption | 20W:120W/ 30W:150W |
Machine net weight | 6kg/8.4kg |

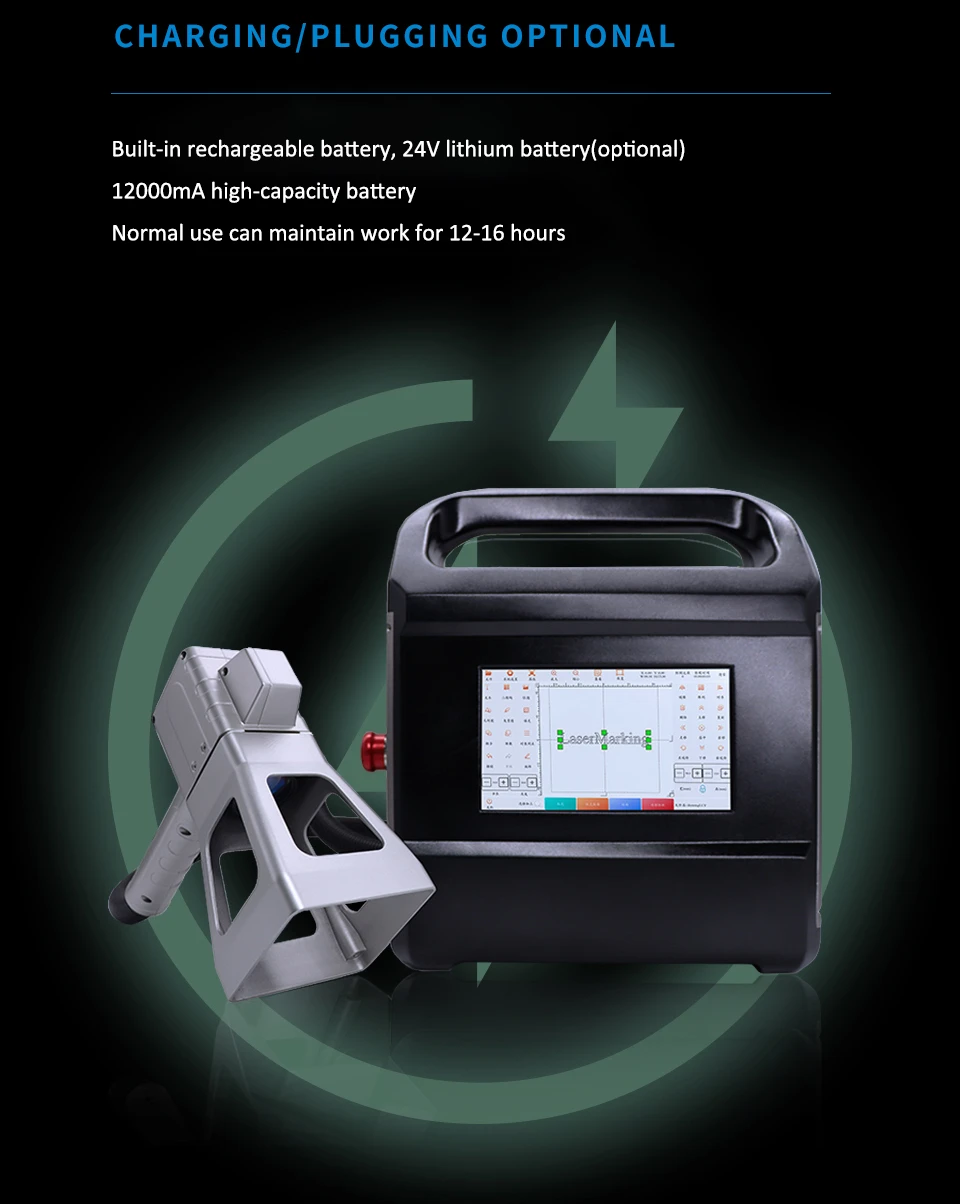

Full power Continuous working hours | 6-8 hours(lithium battery) |
Adapt to the temperature | 0-40℃ |
Relative humidity of environment | 30-85RH(no-condensation) |

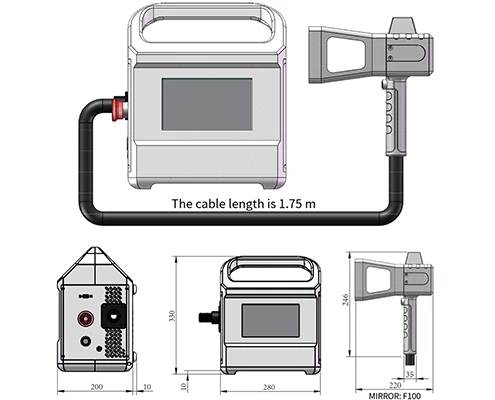

Appearance size | 330mmx280mmx200mm |
Type of marking | QR code, barcode, Chinese, English, date, logo, pattern, ect |
