LASER CLEANING MACHINE
Laser cleaner is used to remove contaminants, such as rust, paint, oil, grease, coating and other stains from surfaces

Laser Cleaning Machine

Laser cleaning machine, a form of laser cleaning, proves to be a highly efficient method for cleansing metal components. Utilizing a fiber laser cleaning system, it is possible to swiftly and thoroughly eliminate rust and other impurities without causing harm to the underlying metal.

Laser rust removal is a great alternative to manual and chemical cleaning methods since rust is removed with greater precision and lower recurring costs. It’s also a great way to reduce your environmental impact.

Laser rust removal is a non-contact method that continuously removes rust while drastically lowering maintenance costs.

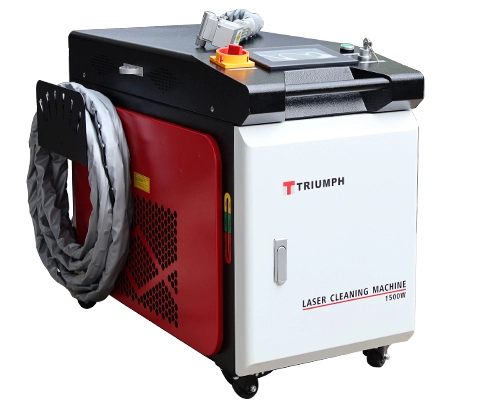

Laser Cleaning Rust Removal Machines, Triumph Laser Cleaning Machine 2

Laser Cleaning Rust Removal Machines, Triumph Laser Cleaning Machine 1

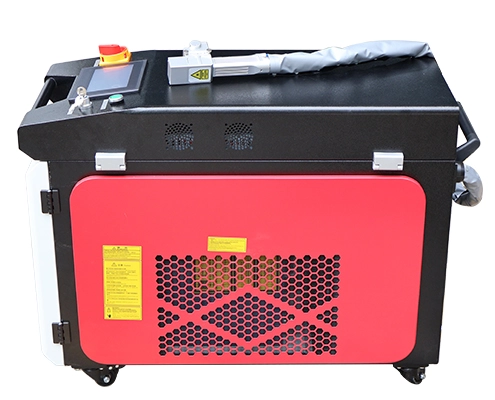

Laser Cleaning Rust Removal Machines, Triumph Laser Cleaning Machine 3

Buy It Now

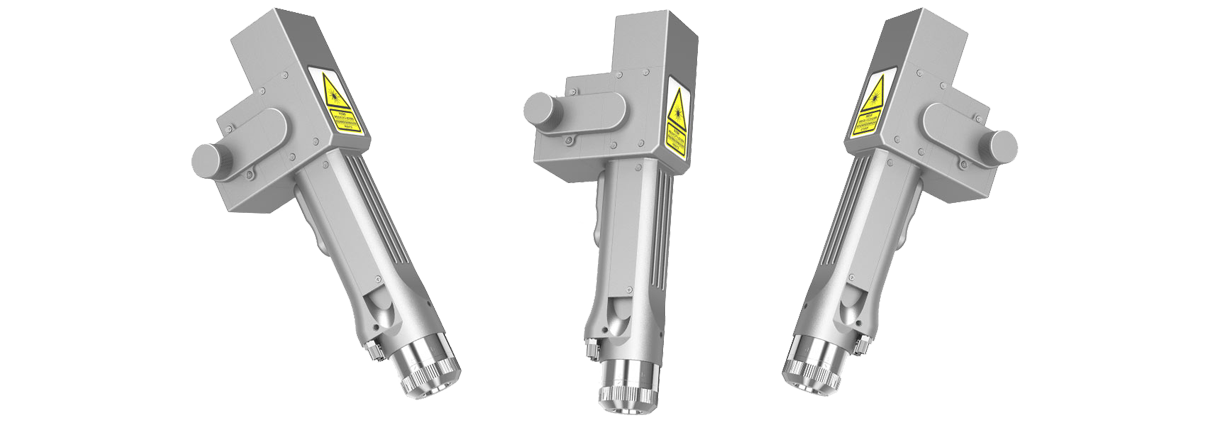

Laser Cleaning Head

New optical path design, the maximum cleaning width up to 300mm, the maximum working distance up to 800mm, cleaning face 0 arc

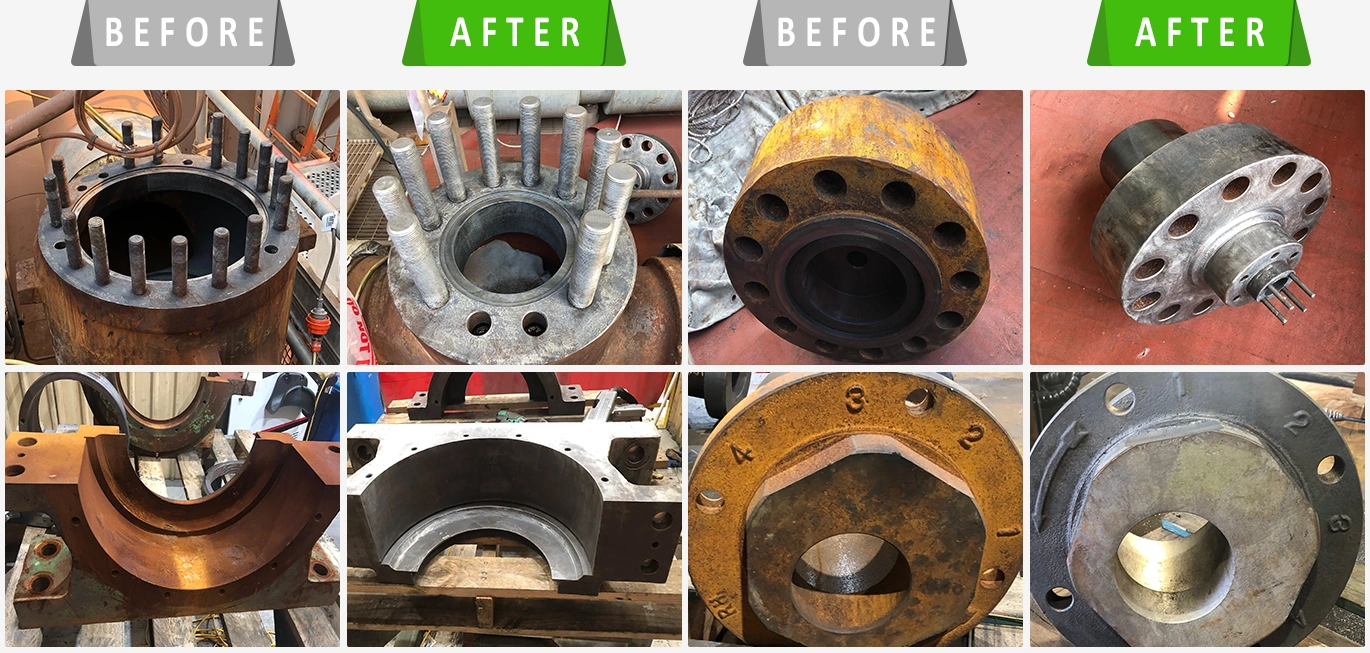

BeforeAfter

Multiple insurance to protect user safety

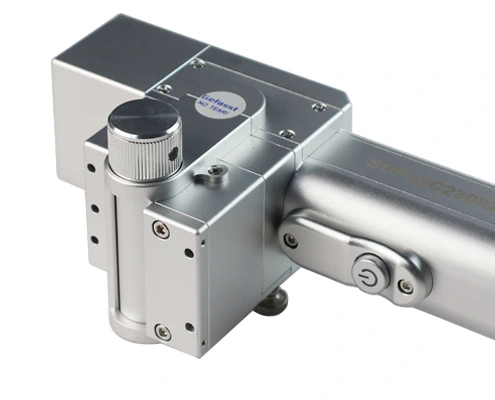

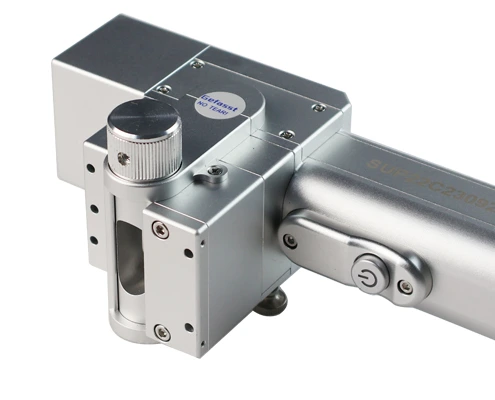

Knob safety lock，open when in use, not afraid of misoperation
Single button to start laser, double-click the button to start laser, two modes can be selected

New Design, Improve Ceaning Efficiency

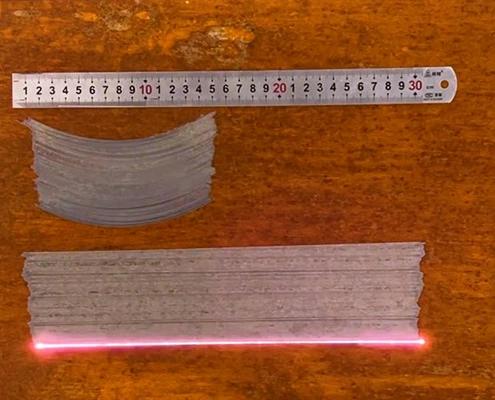

triumph laser cleaning machine rust removal derusting application

The cleaning track is a straight line, saying goodbye to the missing corners of the arc track

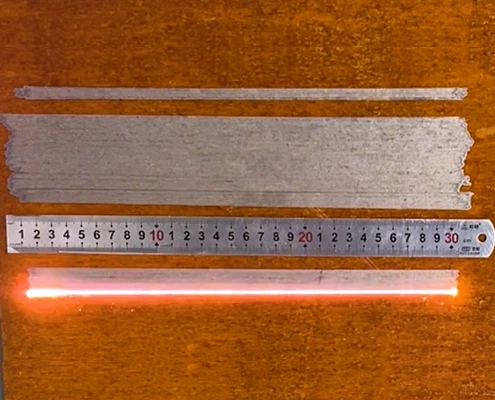

triumph laser cleaning machine rust removal derusting application 2

The cleaning format can be extended to an amazing 300mm

The working distance can be increased to a staggering 800mm

Multi-functional Laser Cleaning Applications

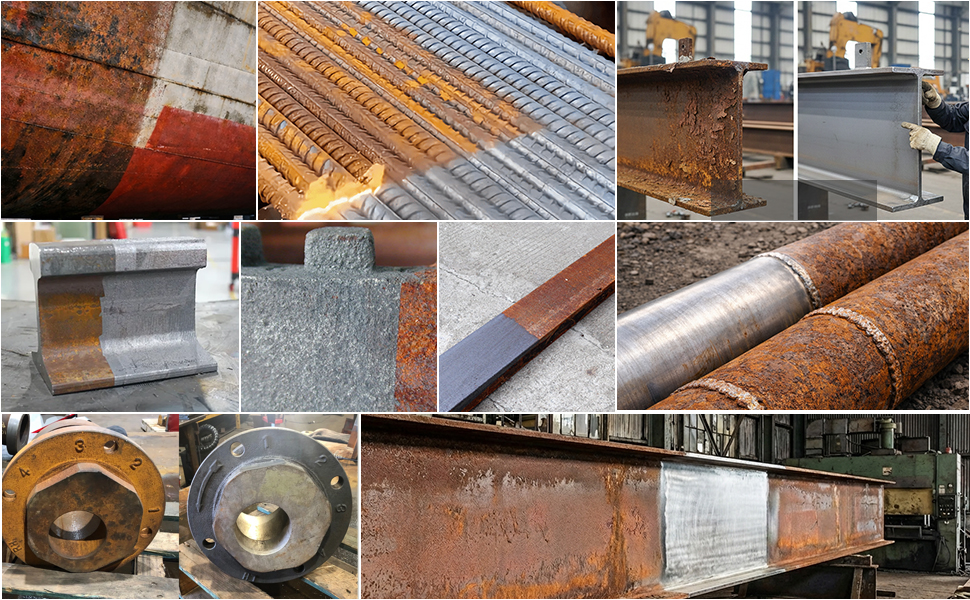

Fiber laser cleaning machine is not only a laser rust removal tool, it also used for laser paint removal, laser degreasing, laser removal of oxide layer, laser cleaning screw, laser derusting, laser weld-cleaning.
Applied in shipbuilding industry, auto parts, rubber mold, high-end machine tools, tire mold, tracks, environmental protection industry and other industries.

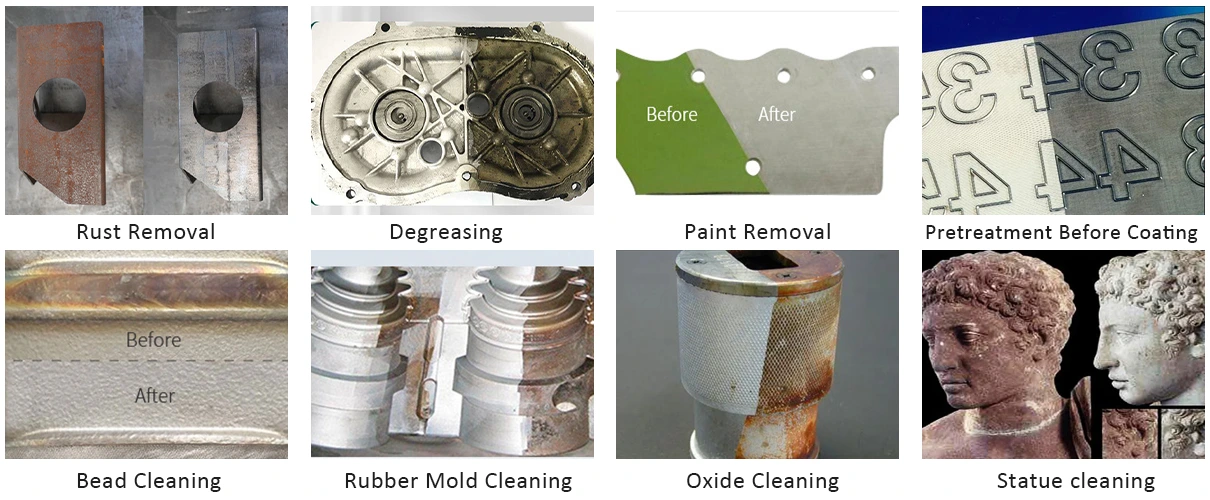

triumph laser cleaning machine application

Laser Cleaning Video

Technical Parameters

Model	TR-HLC
Laser power	1000W/1500W/2000W
Wavelength	1080nm ± 10 nm
Mode of Operation	CW/Modulated
Power Tunability	10 to 100%
Laser Beam Quality, BPP	≤1.5 mm x mrad (50μm QBH)
Modulation Frequency	≤20 kHz
Preview Red Light Power	150 μW
Interface	QBH (LOC)
Length	10m
Bending Radius	200mm
Supply Voltage	220VAC (-15% to +10%) Single-phase
Cooling system	Industrial Chiller
Operating Temperature	+10 to +40℃
Storage Temperature	-10 to +60℃
Collimating focal length	60nm
Focal length	400mm/800mm
Maximum air pressure	15Bar
Scan width	0-300mm
Machine Size	90×45×70cm (35.4″×17.7″×27.6″)
Gross Weight	170kg
