large format laser cutting machine
Large Format Large format laser cutting machine can Meet The Processing Requirements Of Materials

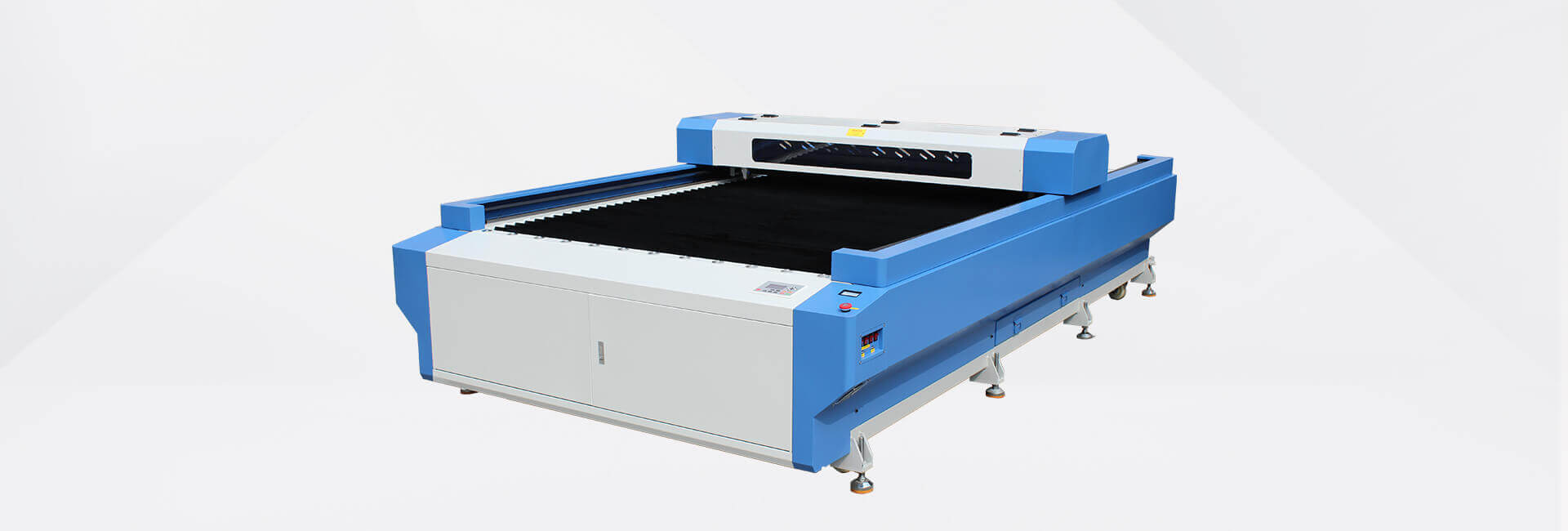

Large Format Laser Cutting Machine

Large work format CO2 laser cutter for large-format materials.With this laser cutters you can engrave or cut the following materials: acrylic, glass (engraving), wood, plastic, leather, paper, stone (engraving), textiles and many more.

laser cutter product advantages:Protects the laser components for high-quality cutting results;The freely-accessible processing area can be accessed from all sides.;A wide range of processing tables and accessories.

Large format laser cutting machine is the right choice for large format CO₂ laser cutting machines. The highly efficient flatbed laser plotters are ideal for demanding cutting applications in plastics, wood, textiles and many more.

Applicable Materials
Cloth,leather, wool, fur, acrylic, plexiglass, wood, plastic, resin,rubber, bamboo product,resin,paper,carton and other non-metal materials.
Applicable Industry
The machine is suitable for garment,leather, package and printing,advertisement decoration, building upholster, art gift, computer embroidery, paper product, acrylic product, middle density board etc. non-metal sheet precision cutting and other industries.

Features of Laser Cutting Machine

Fully closed beam path

The laser beam is covered over its complete path. An active laser deflector shield on the laser head completes the safety concept.
Safe operation is guaranteed.

Four sides access

The working area of 1300 x 2500 mm of the machine is designed for large format materials. It is easy to access from all four sides.The open design allows unloading and loading from all four sides even during processing.

Productive and reliable

Laser cutting bed are designed for processing large format materials with superiour speed and precision. The high-quality, perfectly matched components of our laser cutters ensure an extremely long lifetime.

Sample Display

How It Works

We have some laser cutting videos to help you understand how it works

Standard Accessories

Machine

Water chiller

Exhaust fan

Air pump

Optional Configuration

Smoke purify system
view more

Air compressor
view more

Laser protection glasses
view more

Upgrades For The Pro Laser Cutter

Metal Cutting System

High Power Laser Tube

Larger Format

Technical Parameters

Model	TR-1325/TR-1530
Laser Power	80W/100W/130W/150W/300W
Working Area	1300X2500mm(51.18″X98.43″)/1500X3000m(59.06″X118.11″)
Cooling Type	Water cooling
Laser Output Control	0-100% Set by software
Display Panel	LCD panel showing current file,total working time,laser power,speed etc
Power Supply	220V±10% 50HZ or 110V±10% 60HZ
Compatible software	Coreldraw,Autocad,Illustrator
Color Separation	Yes
Operating Modes	Optimized raster, vector, and combined mode
Computer Interface	Ethernet and USB Connection
Compatible Operating Systems	Windows XP/2000/Vista/7/8/10
Resolution(DPI)	User controlled from 100 to 500DPI
Color Separation	Yes
Machine parts	Water chiller, Air pump,Smoke pipe, Exhaust fan,130W(Standard configuration)
