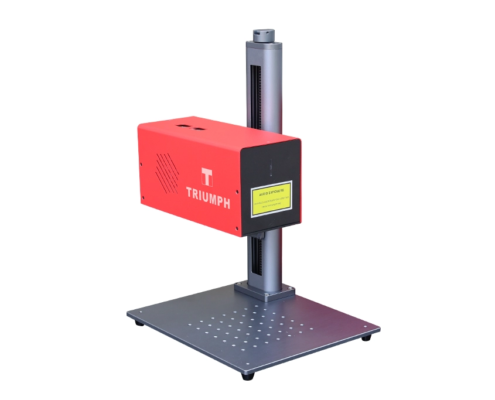

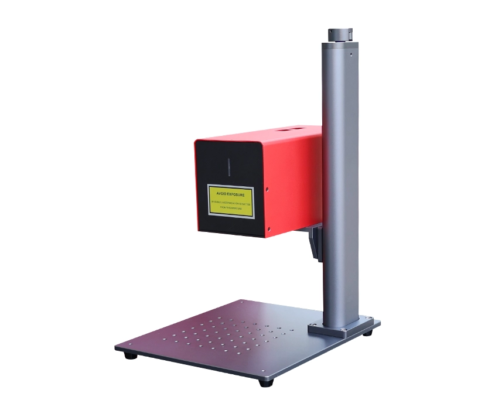

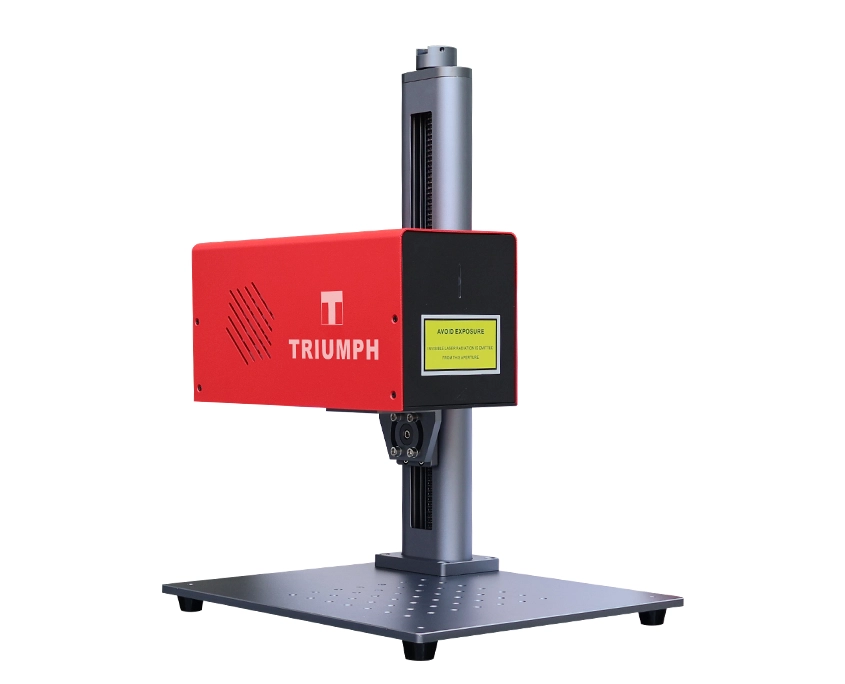

Integrated Fiber Laser Marking Machine FT Series
Ultra-Compact & Lightweight
Integrated Fiber Laser Marking Machine – Ultra-Compact & Lightweight
This new-generation fiber laser marking machine features a fully integrated design, combining the laser source, control system, and optical path into one compact body.
Weighing only 13 kg, it’s one of the lightest and most space-efficient models on the market — easy to carry, install, and operate anywhere.
Despite its ultra-compact size, it delivers powerful, high-speed, and precise marking performance, making it the perfect choice for flexible production, small workshops, and portable marking needs.
Features
-
🔩 All-in-One Integrated Design – Laser source, control box, and optical system in one unit.
-
⚙️ Ultra-Lightweight – Only 13 kg for easy transport and setup.
-
🚀 High Precision & Fast Marking – Delivers crisp, permanent results.
-
💡 Compact & Space-Saving – Ideal for small workshops or mobile marking tasks.
-
🧰 Reliable Performance – Stable output with minimal maintenance.
Technical Parameters
| Model | FT-20/FT-30 |
| Laser Power | 20W/30W |
| Laser Wavelength | 1064nm |

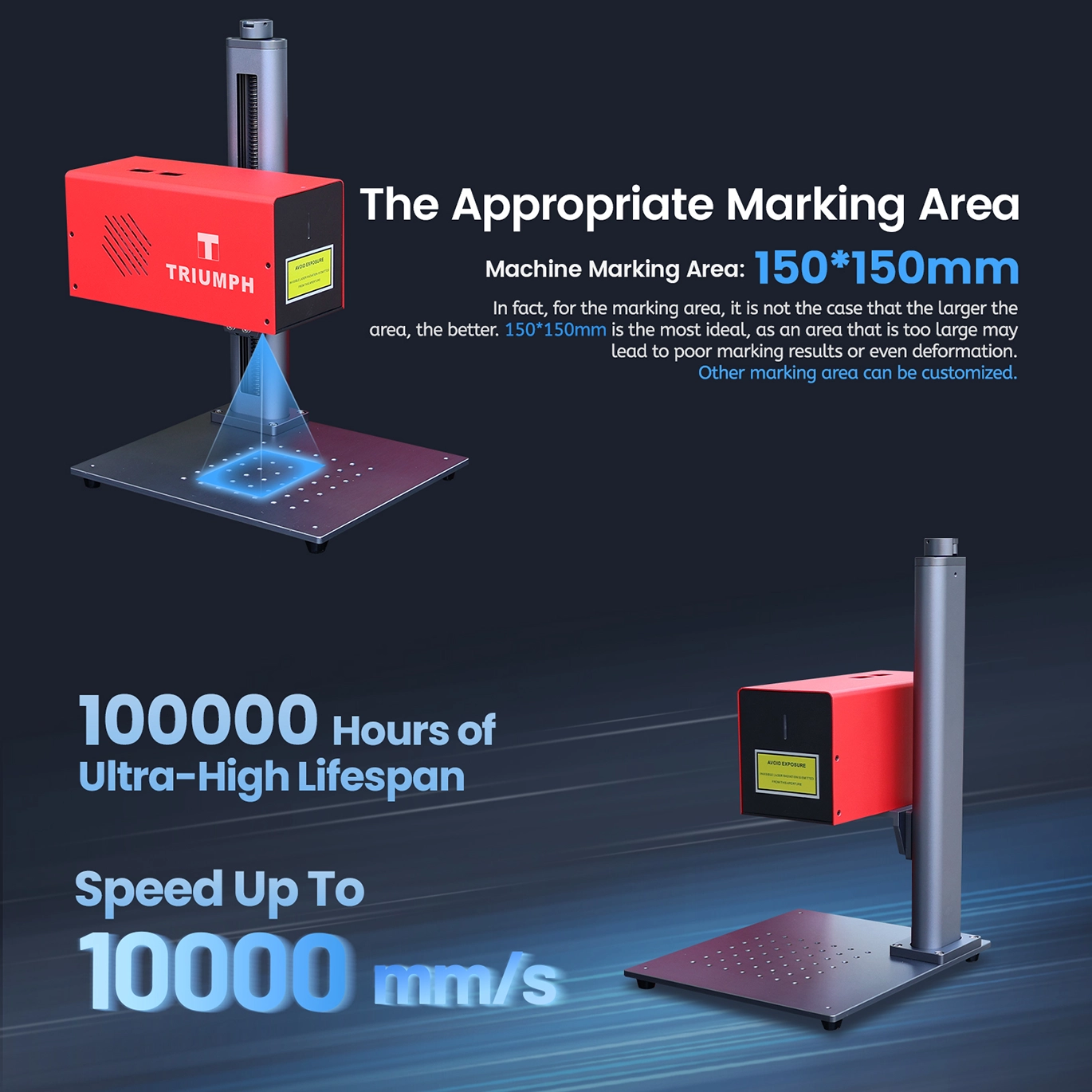

| Working Area | 150×150mm |
| Laser Frequency | 30-60kHz |
| Max.Engraving Depth | 20W:0.015-0.5mm/30W:0.015-1mm |
| Max. Engraving Speed | 10000mm/s |
| Positioning Accuracy | ±0.1μm |
| Repeatability | ±0.001mm |
| Software | BalAppSimple |
| Compatible Operating Systems | Windows XP/7/10/11 |
| Minimum Line Width | 0.02-0.04mm |
| Cooling Method | Air Cooling |
| Supported Files | .ai、.bmp、.dx、.dxf、.gif、.jpg |
| Laser Life | 100000 hours |
| Warranty | 2 Years |
| Power Consumption | 20W:Max. 250W/30W:Max. 350W |
| Machine Weight | 20W:13kg/30W:18kg |
| Package Size | 58×46×30cm |
| Power Requirements | AC220V/50Hz Or AC110V/60Hz |
Contact us today to get a free quote or technical consultation
