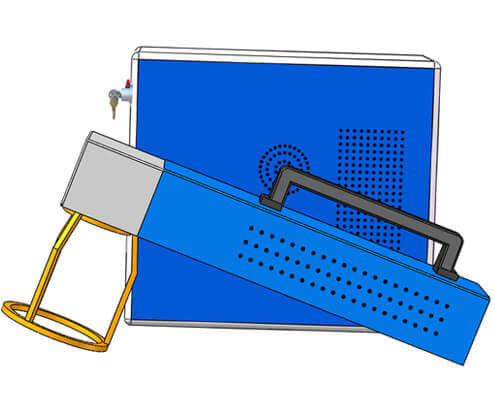

Handheld laser marker provides a handheld marking head that extends outward from the power supply housing. It could be used in 2 scenario: either to integrate with flow line or for bulky substrate laser marking.
It is easy to move and use. You can move the laser head to mark or engrave the material, which is especially suitable for marking large volumes of materials.
Co2 laser markers take high quality metal laser tube as the laser source. By 2D fast-speed scanning mirrors swinging as the scheduled angles under the controlling of the computer, the laser focus on the surface of the work piece by focus lens to form images and realize marking and graph processing.
Metal tube has exquisite beam quality, stable power output, high marking precision, long working life time, and can work for 20,000-30,000 hours free of maintenance, then can be recharged by re-filling with co2 gas, suitable for users requiring batch production and high marking precision.
It can be widely used in leather ,food ,beverage,cloth,electronic,meter,communication instruments,package,etc.can be cooperate with production for online marking.It can proceed marking/carving/engraving/nicking a variety of text, symbols, graphics, images, barcodes, serial numbers,etc.
Simple structure, abrasion and rusty against component, the system have the most stable performance and moving precision.
Two red light help you easily align the correct focal length，Only need to adjust the height of the table until the two red light coincidence.
Digital fast-speed scanning laser head, it can be the graph in shortest time to finish fine marking process.
We have some laser marking videos to help you understand how it works
| Laser Power | 30W/60W |
| Working Area | 70X70/110X110/150X150/210X210*300X300mm |
| laser wavelength | 10.64μm |
| Frequency | 20KHz~100KHz |
| Graphic Format Supported | bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. |
| Laser Module Life | >20,000 hours |
| Power Supply | 220V±10% 50HZ or 110V±10% 60HZ |
| Marking Depth | adjustable according to materials |
| Color Separation | Yes |
