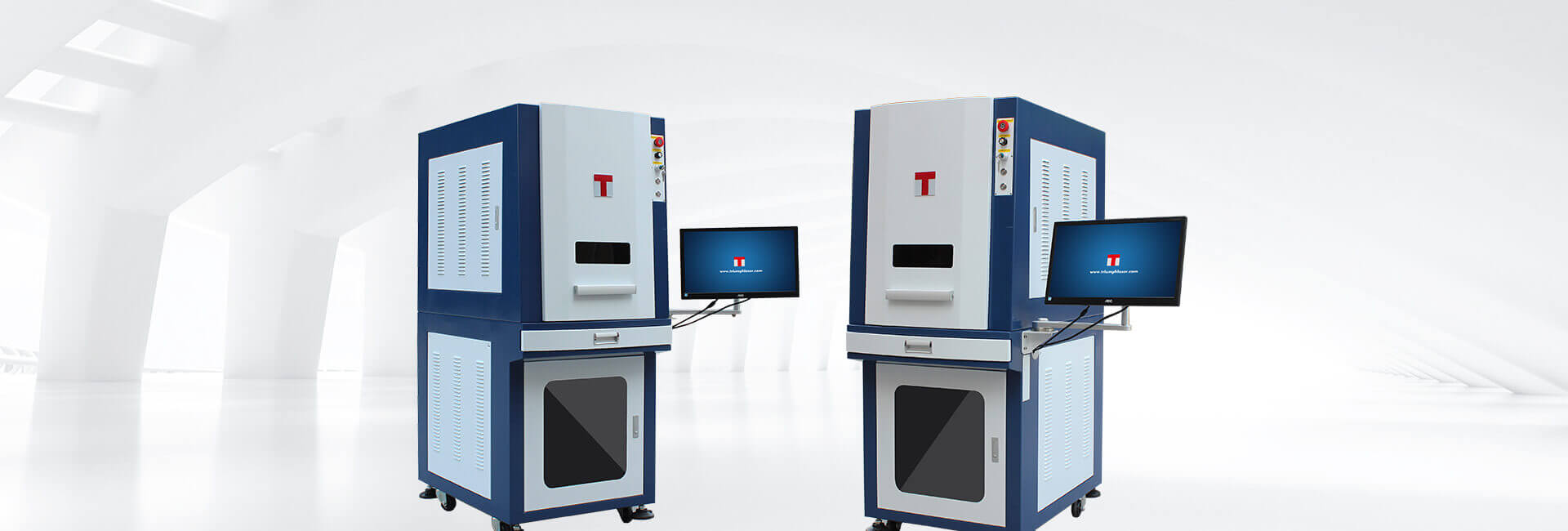

• Full Enclosed Fiber Laser Marking Machine

Full Enclosed Cabinet Fiber Laser Etching Machine
Full Enclosed Cabinet Fiber Laser Etching Machine
Full Enclosed Cabinet Fiber Laser Etching Machine
Full Enclosed Fiber Laser Marking Machine
Full Enclosed Fiber Laser Marking Machine

Fully Enclosed Fiber Laser Marking Machine

Triumphlaser full enclosed fiber laser marking machine has the enclosed protection case. In terms of configuration, it adopts the motorized up/down function, and also equipped with laser alarm switch， which are not available on other types.

This full enclosed fiber laser marking machine has the enclosed protection case. In terms of configuration, it adopts the motorized up/down function, and also equipped with laser alarm switch， which are not available on other types.

user manualEzCad Manualcatalogue

Features of The Fiber Laser Marking Machine

Full Enclosed Fiber Laser Marking Machine

Fully Enclosed Cover

Fully enclosed fiber laser marking machine has a sealed structure. During work, fog will be kept in the enclosed laser cabinet without emission to outside. Environmental, friendly and healthy, this design is special for European market or other markets which have high demands for working environment.

High speed laser marking

High-speed laser marking

The full enclosed laser marking machine has been developed for marking large quantities of small- to medium-sized parts. The laser marking machine is able to mark pens, usb-sticks or data plates in only a few seconds.

Simple operation

The software supports almost all common file formats, do not need to understand any programming language, simply set a few parameters can start marking.

Double red positioning

Two red light to help you easily be able to align the correct focal length，Only need to adjust the height of the table until the two red light coincidence.

Machine Application Scope And Materials

Electronic and communication products, IC products, electric lines, cable computer components and electric appliance.Every kind of precision parts,hardware tools,instrument appliance,aviation and spaceflight appliance.Jewelry, garments, instruments, gifts, office devices, brand scutcheon, sanitary ware appliance.Dishware ,food ,drinking,smoking and alcohol,etc.

Electronic industry

Electronic industry

Laser craft

laser craft

Jewelry industry

Jewelry industry

Hardware industry

direct part marking industry

Stationery industry

stationery

Precision parts industry

precision parts industry

Kitchenware

Mobile phone industry

mobile phone industry

Sample Display

laser marking phone
Electronic industry
nametag laser marking
More material

How It Works

We have some laser marking videos to help you understand how it works

Standard Accessories

Machine

Full Enclosed Cabinet Fiber Laser Etching Machine

Laptop

Guiding Video

triumphlaser user manual and guiding video

Foot switch

foot switch

Wrench

wrench

Test material

test material

Power cable

power cable

USB cable

usb cable

Optional Configuration

Rotary marking attachment
view more

Rotary

F-theta scan lens
view more

Higher Accuracy

Laser protection glasses
view more

Laser protection glasses

Smoke purify system
view more

Smoke purify system

X/Y adjustable table
view more

3D work platform

Rotary for ring marking
view more

Rotary for ring marking

Technical Parameters

Laser Power20W/30W/50W
Working Area70X70mm/110x110mm/150x150mm
laser wavelength1064nm
Frequency1KHz~400KHz
Graphic Format Supportedbmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
Laser Module Life>100000 hours
Power Supply220V±10% 50HZ or 110V±10% 60HZ
Marking Depthadjustable according to materials
Color Separation Yes
OptionRotary/F-theta scan lens/Laser protection glasses/Smoke purify system

Frequently Asked Questions

“Laser marking” stands for marking or labeling of work pieces and materials with a laser beam. In this regard, different processes are distinguished, such as engraving, removing, staining, annealing and foaming. Depending on the material and the quality requirement, each of these procedures has its own advantages and disadvantages.

Metals:Stainless steel, aluminum, gold, silver, titanium, bronze, platinum or copper

Plastics:ABS, polycarbonate, polyamide, PMMA or plastics with laser additives

Other materials:Foils and films, Laminates, Paints

All metals can be engraved into with some depth; however, some metals are more amenable to depth engraving. Softer aluminum material will engrave with depth with only a few passes. The best way to test your material is with our Applications Lab.
