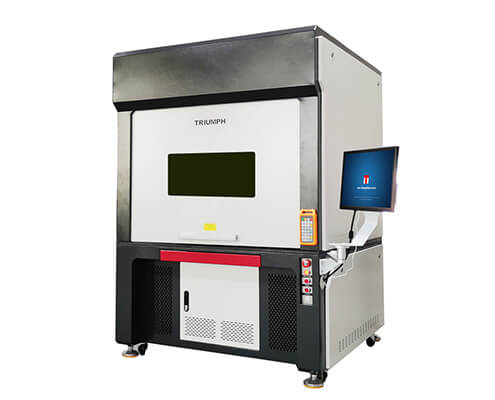

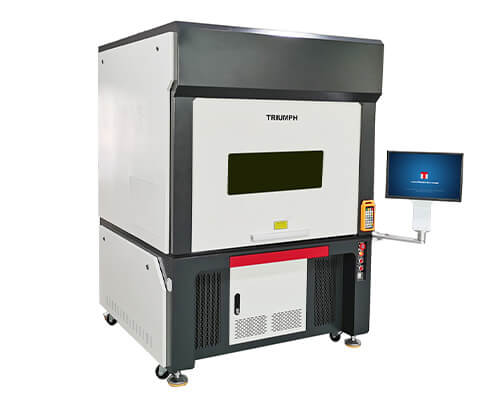

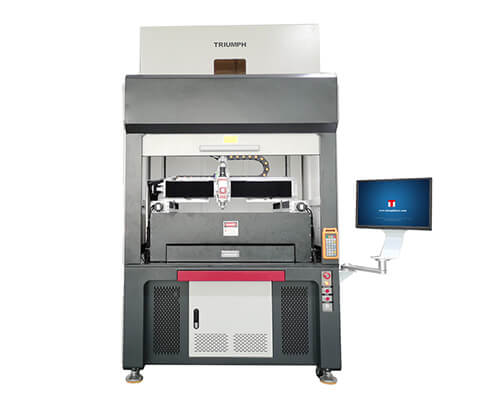

Economical Fiber Laser Cutting Machine TR-F6060E

TR-F6060(E) is a CNC Fiber Laser Cutting Machine with high precision, An economical and practical machine that is very easy to operate, it can provide a good experience for customers who are just starting to use laser cutting machine.widely used for carbon steel sheet cutting, stainless steel plate cutting, aluminum sheet cutting and brass cutting etc.With small size, high working effectiveness, it’s very popular among home workshops and customer who need to process thin metal material cutting.

The product uses the industry leading various configurations, market testing experience for many years, mature performance, has a good ability of public praise.

Application

Applicable materials:Used for cutting gold,silver,carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy,galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.

Applicable industries:Applied in high precision apparatuses,aluminum copper clad laminates, machinery, electrical apparatuses, metal crate and cabinet, electric appliance shell, metal plate processing,sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.

Advantages of Small Size Fiber Laser Cutting Machine

1. Small Size: Fiber laser cutting machine 6060 has a small size , easy to place in the factory.
2. Fully Enclosed Design: Adopt an European CE standard laser protective glass, keep safty.
3. Environmentally: The smoke produced by cutting can be filtrated inside, it’s non-polluting and environmentally friendly.
4. High Cutting Precision: Fiber laser cutting machine is equipped with Japanese Panasonic servo motor, imported TBI dual driver grinding ball screw for Y axis, imported TBI grinding ball screw for X axis and Hiwin guide rail, the positioning accuracy of the machine tool can be 0.005mm.
5. System: The machine owns perfect cooling system, lubrication system and dust removal system, to ensure that it can operate stably, efficiently and durably.
6. Smart Software: The specialized CAD / CAM automatic programming software and automatic nesting software aim to maximally save raw materials.
7.Supported Variety Format: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT,NC,GBX etc…

Fiber Laser Cutting Machine Videos

Technical Parameters

ModelTR-F6060(E)
Working Area600mm×600mm(23.62″×23.62″)
Laser Power500W-3000W
Max.Cutting Speed40m/min
Max. accelerated1G
X/Y-axis positioning accuracy0.02mm
X/Y-axis repositioning accuracy0.02mm
Power supply220V / 50Hz
TransmissionPrecise pinion and rack,dual-drive transmitting
Machine Size140cm×128cm×188cm(55.12″×50.39″×74.02″)

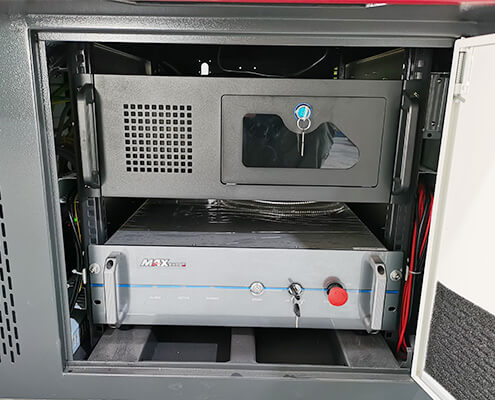

Fiber Laser Series

We have multiple series of fiber lasers for choice,such as MAX fiber laser series,Raycus fiber laser series.

The fiber lasers has higher electro-optical conversion efficiency, higher and more stable optical quality, stronger altitude stress-resisting capacity and it applies optimized second-generation fiber transmission system to ensure more stable and more sophisticated cutting effect in thick sheet cutting. fiber lasers applies to many application scenarios: cutting, welding, holing, medical device processing, etc., with a narrow seam of the cut sheet and bright section.

  • HighElectro-optical Conversion Efficiency
  • Altitude Stress-resisting Capacity
  • Sheet Cutting Efficiency
  • Customized Output Fiber Length
  • Maintenance-freeOperation
  • Wide Modulation Frequency Range

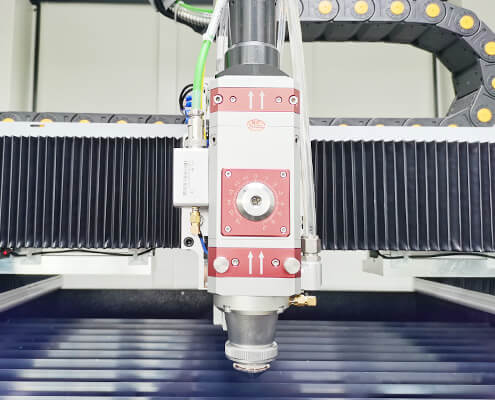

Raytools Laser Head Series

The laser head made in Swiss is suitable for fiber laser cutting machine, with a diversified interface setting so that it can be matched with all kinds of mainstream fiber lasers. The cutting head adopts the optimization of optical design, light weight, small volume, easy to use, with a height sensor can make cutting more efficient, but low price,which is preferred for cutting equipments with fiber laser cutting machine.
Auto – focus:Applicable to various focal lengths, which are controlled by machine tool control system. Focal point will be automatically adjusted in cutting process to achieve the best cutting effect of different thicknesses sheets metal.
Accuracy:Increasing perforation focus length, separately setting perforation focal length and cutting focal length, enhance cutting accuracy.

Raytools laser cutting head BT210S:(Rated Power)≤1500W
Raytools laser cutting head BM109:(Rated Power)1500W
Raytools laser cutting head BT240S:(Rated Power)3000W
Raytools laser cutting head BM114S:(Rated Power)6000W

OSPRI Laser Head Series

OSPRI laser head is a auto-focus cutting head,which is featured by its fast speed of focusing, high accuracy, user-friendly operation, compact structure and light weight.
Additionally, the built-in auto edge-searching sensor can facilitate the users to position the sheets. Patented design of dust-proof collimating protective window can better protect the optical parts inside the head and extend the service lifespan.
It can not only monitor the temperature of all optical lenses inside the laser head in real time, but also monitor the air leakage, piercing conditions etc. All the feedback information will be uploaded to PC and mobile APP in real time.

OSPRI laser cutting head LC209:(Rated Power)2KW/4KW
OSPRI laser cutting head LC208:(Rated Power)≤4KW
OSPRI laser cutting head LC608:(Rated Power)≤6KW~≤12KW
OSPRI laser cutting head LC808:(Rated Power)8KW

Laser Control System

The operating system can realize intelligent layout of graphics cutting and support the import of multiple graphics, optimizing cutting orders automatically, searching edges smartly and automatic positioning.
Control system adopts the best logic programming and software interaction, provides stunning operation experience, effectively enhancing the utilization of sheet metal and reducing waste. Simple and fast operation system, efficient and accurate cutting instructions, effectively improve the user experience.

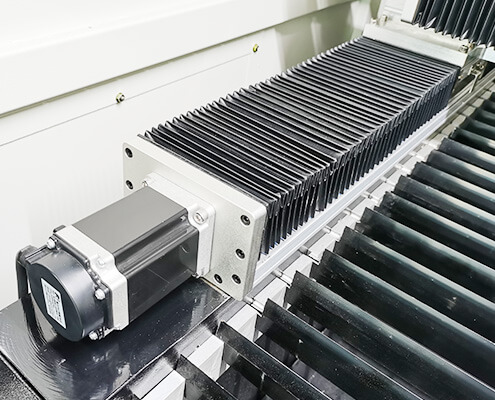

ball screw transmission

Ball screw transmission

High transmission efficiency,high dynamic precision,smooth movement,no creeping phenomenon,no empty travel in reverse,reversible,long service life

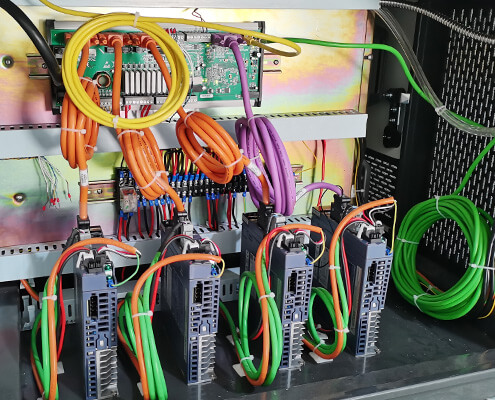

Fuji Electric

Server System

The fiber laser machine adopts the imported servo system from japan including servo motor and servo driver,The electric and drive systems provided by Japan Fuji Electric offer customers a faster rotation speed and better stability.

autofocus laser cutting head

Auto-adjusting Height System

The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.

remot contorl

Remote control

Just like the remote control ,It is easy to operate the machine
