Air Cooled Handheld Laser Welding Cutting and Cleaning All in One Machine
1300W/1700W

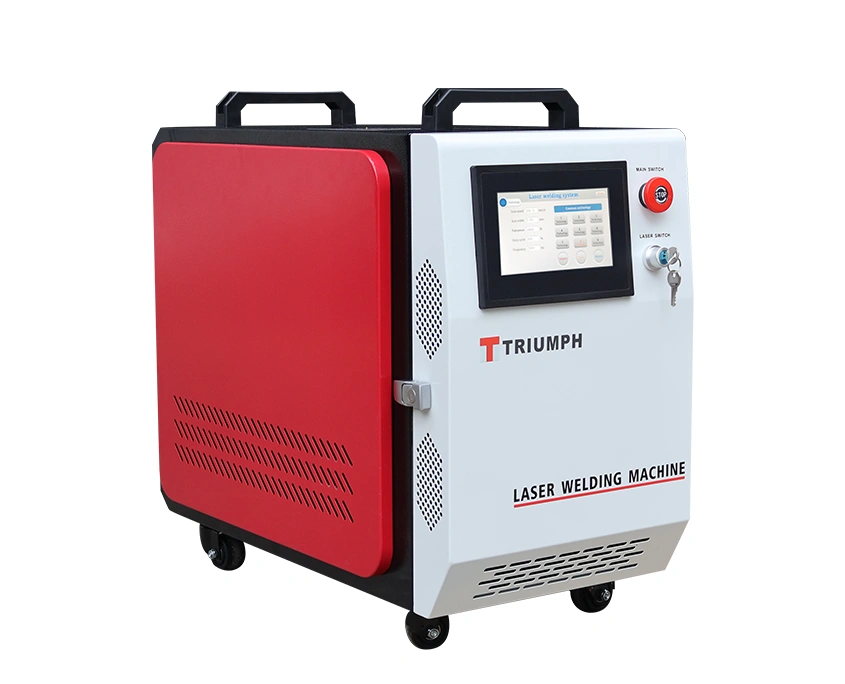

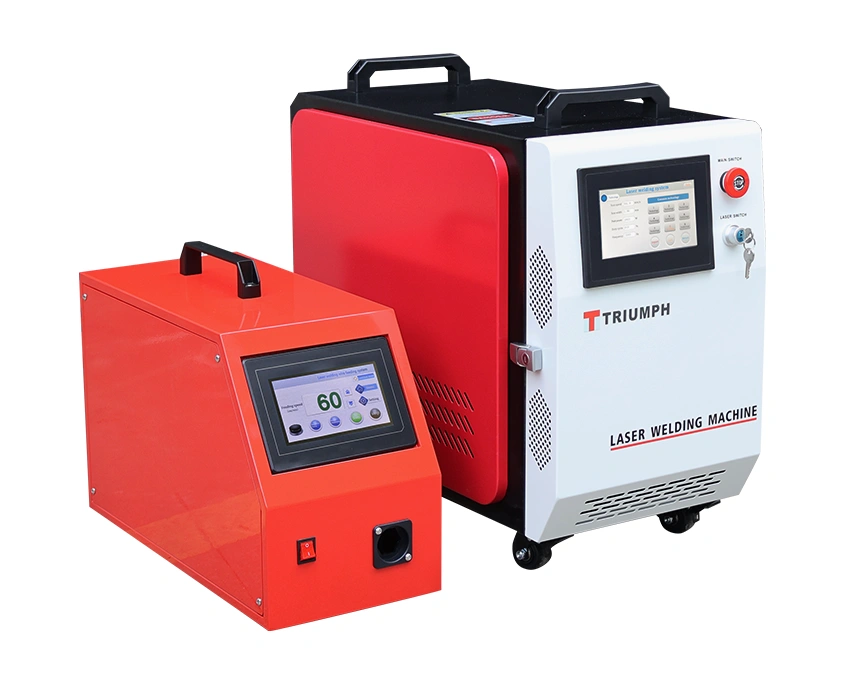

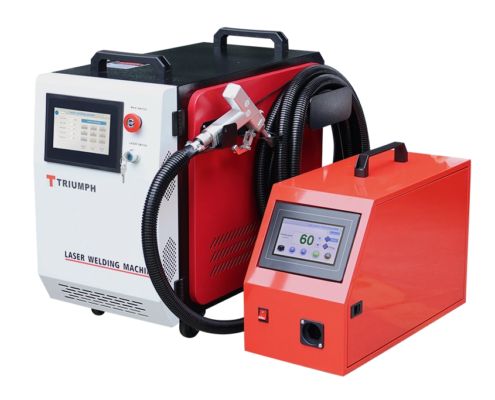

Air-Cooled Laser Welding Machine
TriumphLaser’s next-generation Air-Cooled Laser Welding Machine — a compact, high-performance welder designed for modern metal fabrication.
This innovative air-cooled fiber laser welder delivers powerful and stable welding performance without the need for a traditional water chiller.
By adopting an advanced air-cooling system, the machine eliminates bulky water tanks and complex piping, reducing maintenance and operating costs.
With its lightweight, compact design, it’s easy to install, energy-efficient, and perfectly suited for small workshops or on-site applications.
The Air-Cooled Laser Welding Machine provides consistent, clean, and precise welds on a wide range of materials, including stainless steel, aluminum, carbon steel, copper, and other metals.
It’s the ideal choice for manufacturers seeking a cost-effective, eco-friendly, and reliable laser welding solution.
Welding Cleaning and Cutting All In One Machine
Laser Welding
The primary function is welding. It is designed to join materials together using a high-powered laser beam, ensuring a precise and efficient welding process.
Laser Cleaning
In addition to welding, this tool can also perform cleaning tasks. It can remove rust, contaminants, or unwanted material from the surface of the workpiece before or after welding, ensuring a clean and smooth welding surface.
Laser Cutting
Another capability of this tool is cutting. It can be used to cut materials with high precision, making it a versatile tool for various applications that require both welding and cutting.
Weld Bead Cleaning
Seam cleaning is a specific function related to welding. After welding, the tool can clean the welded seam to ensure a polished and finished appearance.

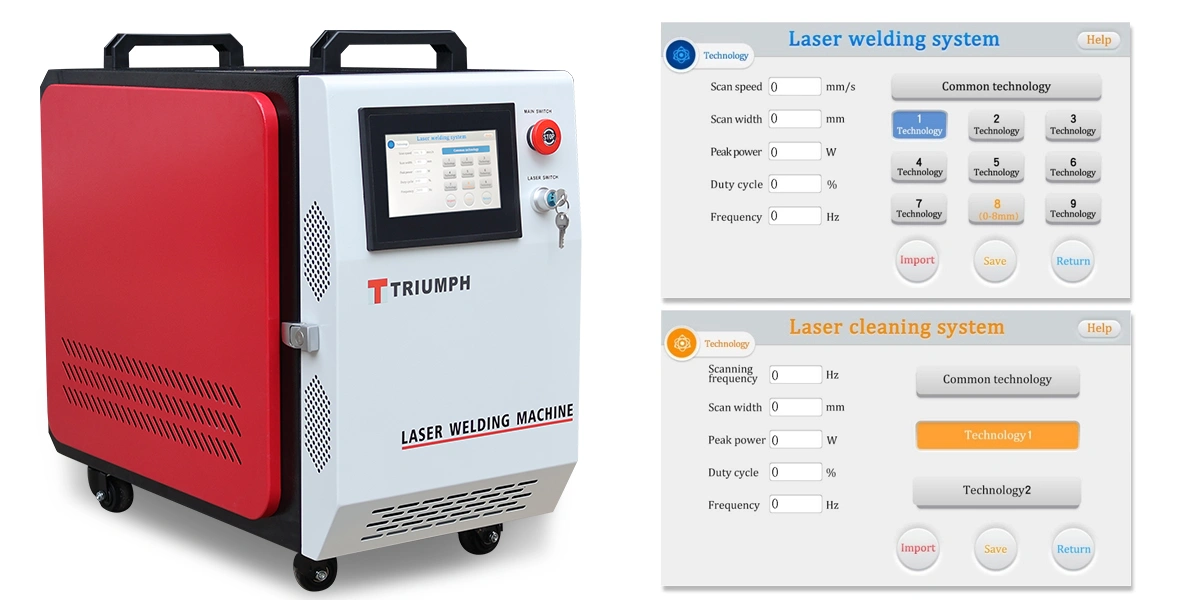

4 In 1 Laser Welding Control System
The new hand-held laser welding machine adopts industrial LED touch screen and intelligent operating system, which supports simple operation mode, easy to learn and easy to operate. Basic training can be learned in 30 minutes, effectively reducing labor costs.
With matching process parameters, users can quickly select welding parameters according to different materials and thicknesses, and novices can also weld high-quality and consistent welds.

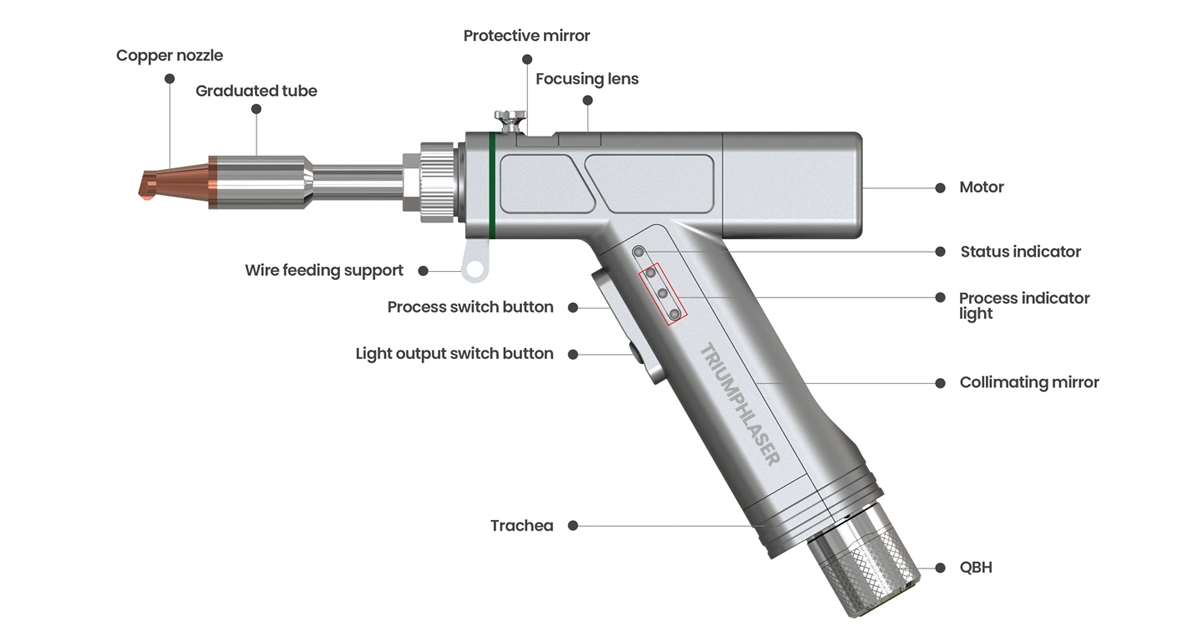

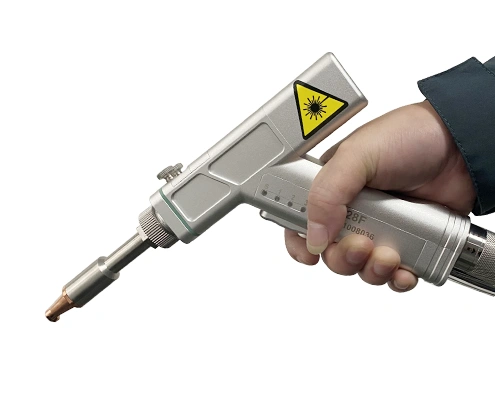

Air-Cooled Handheld Laser Welding Head
A handheld laser welding head is a compact and portable device used for precision welding applications. These devices are designed for ease of use and maneuverability in various welding scenarios.
Small Size: Handheld laser welding heads are known for their small and lightweight design, making them easy to handle and suitable for welding in tight spaces or for intricate welding tasks.
Applications: Handheld laser welding heads find applications in various industries, including automotive, aerospace, electronics, and jewelry making, where precision welding is crucial.
Versatility: Handheld laser welding heads can be versatile, even offering multiple functions, like welding, cleaning, cutting, and seam cleaning

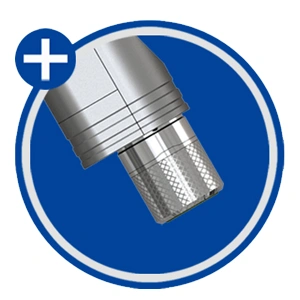

Custom mini QBH lock
Smaller size,lighter weight

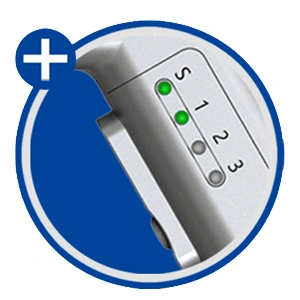

Independent status indicator and process switch button
Safe,reliable and easy to use

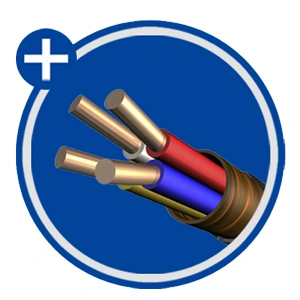

Connecting line upgrade
The analog signaline is upgraded to digital communication line
Built-in digital driver
Stable and reliable.strong anti-interference ability

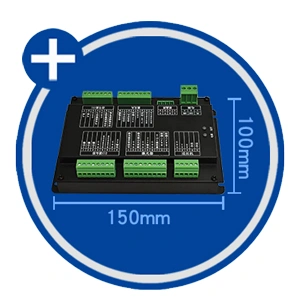

Control box is small in size
150mmx100mmx26mm new design

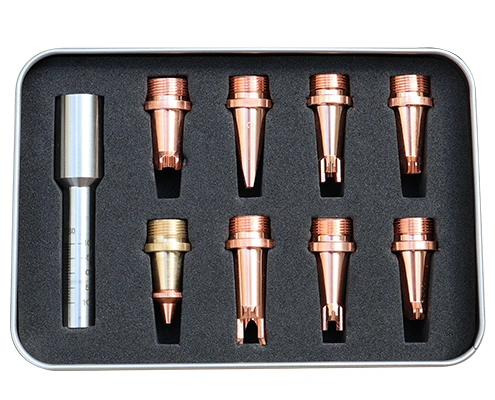

Laser Welding Copper Nozzles
Nozzle Variety:Laser welding heads can be fitted with a variety of nozzles, including angle nozzles and cleaning nozzles. These options allow for flexibility in welding different products and handling various materials.
Application Flexibility: The availability of different nozzles enhances the versatility of laser welding equipment, making it suitable for a wide range of materials and welding needs.
Optimized Performance: The use of specialized nozzles helps optimize the welding process by improving the control and precision of the laser beam
Advantages of Air-Cooled Laser Welding Machine
✅ No Water Chiller Required
Say goodbye to heavy and expensive water tanks. The built-in air-cooling system keeps the laser at optimal temperature without water circulation.
✅ Compact & Lightweight Design
Save workspace and enjoy easy mobility. Ideal for small workshops or on-site welding.
✅ Energy-Saving & Eco-Friendly
Reduced power consumption, lower maintenance costs, and no water waste.
✅ Stable & Precise Welding Performance
Ensure consistent, high-quality welds with minimal thermal distortion.
✅ Easy to Operate
User-friendly interface and plug-and-play setup — no complex installation needed.
How Thick of Metal Materials can A Laser Welder Weld?
| Laser Power | Stainless Steel | Carbon Steel | Iron | Aluminum | Galvanized Sheet |
| 1300W | 4mm | 3mm | 3mm | 3mm | 3mm |
| 1700W | 5.5mm | 4.5mm | 4.5mm | 4mm | 4.5mm |
Laser Welding Machine Details

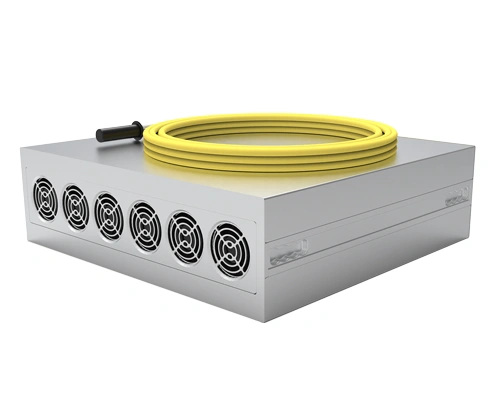

Laser Source
Wire Feeder
Laser Welding Head

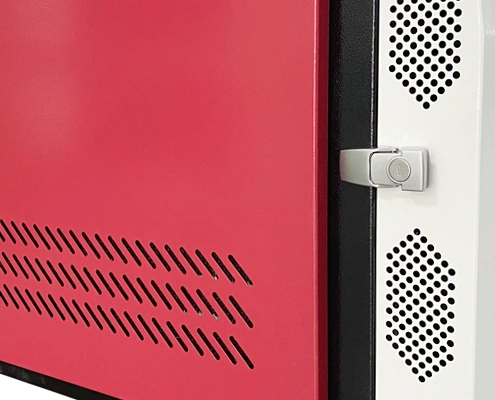

Chassis Heat Dissipation System

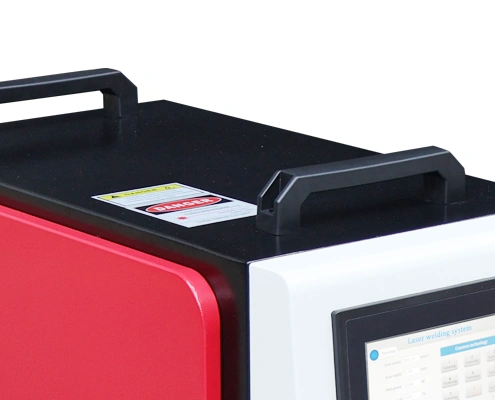

Portable Handle
Welding Copper Nozzles
Key Switch
Universal Wheel
Lightweight, Energy-saving, and Highly Portable
The Application of Air Cooled Laser Welding Machine
Laser Welding Sample Display
Traditional Welding VS Laser Welding
| PROJECT | TIG/MIG | Laser welding machine |
| Labor cost | Difficult to recruit and high salary | Simple operation and low labor cost |
| Disease | Frequent occupational diseases and serious physical injuries | Less radiation, only need protective glasses to filter strong light |
| Speed | Slow speed, low efficiency | 4-10 times faster than traditional welding |
| Hot zone | Large | Small |
| Deformation | Easy to deform | Not easy to deform |
| Quality | The weld is thick and irregular, and needs polishing | Fine and beautiful welds, high welding strength |
| Damage | There is air hole and it is easy to weld through | Welding is uniform and consistent |
| Application | Limited by consumables | Wide application range |
| Master | Professional welders are required | 30 minutes of learning can be mastered skillfully |
Technical Parameters
| Model | TR-HLW |
| Laser wavelength | 1080nm |
| Working mode | Continuous |
| Output power | 1300W/1700W |
| Input voltage | 220V |
| Swing width | 0~5mm |
| Cleaning width | 80mm |
| Swing frequency | 1~30Hz |
| Welding gun interface | QBH |
| Output power(%) | 15-100 |
| Cable length(m) | 10 |
| Beam Quality(M²) | 1.2 |
| Operating temperature | -20°C-45°C |
| Cooling method | Air cooling |

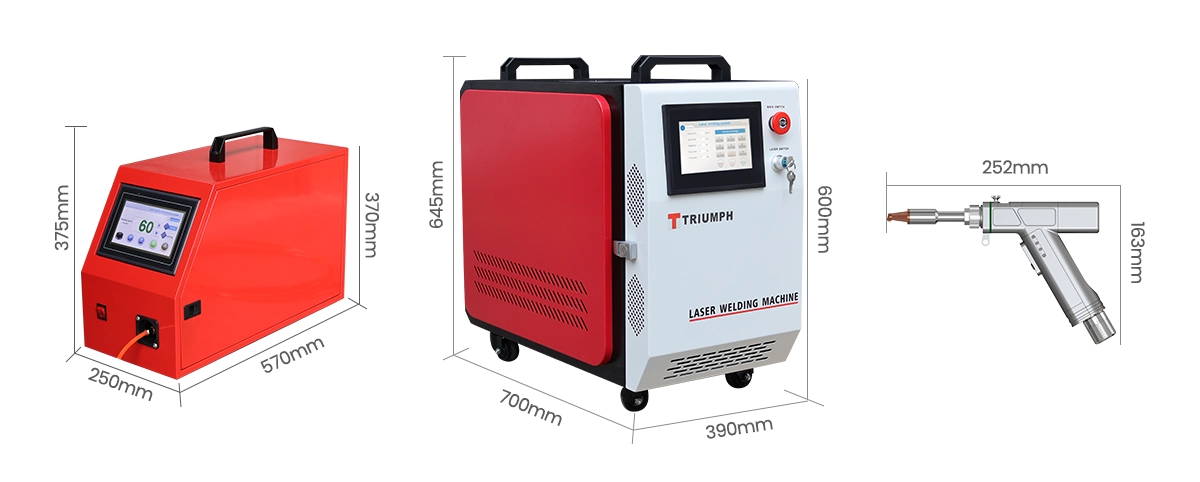

| Machine Dimension | 70×39×65cm(27.5″×15.4″×25.6″) |
| Net weight /Gross weight | 55kg/75kg |
How It Works
We have some laser welding videos to help you understand how it works
