Laser Safety Curtain
Laser safety curtain panels are ideal for containing a laser to a specific area. Common laser applications include (but are not necessarily limited to): Nd:YAG, Co2, and Fiber laser.
The durable base fabric is coated on both sides with a special compound for extended product life and a temperature resistance of 500° F.
Manufactured with modularity in mind, these panels can be hung from the ceiling or an existing frame structure. Combine panels to create unique configurations for your application.
Easily add or remove panels to your configuration using the sewn-on, adhesive-backed Velcro at each end for peel-and-stick connection.

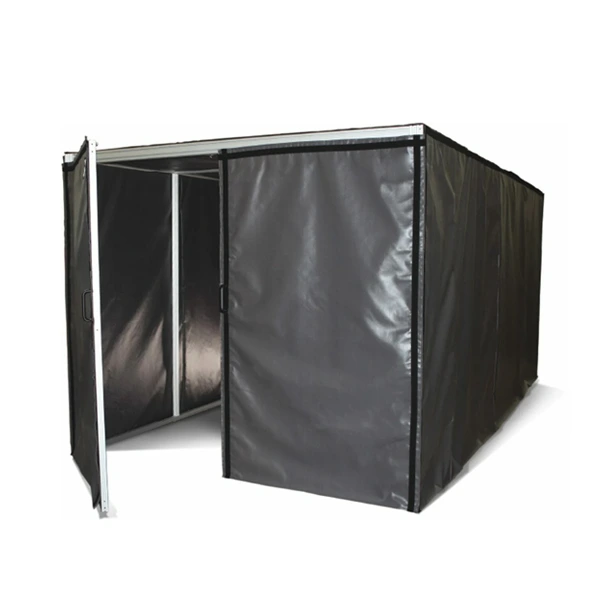

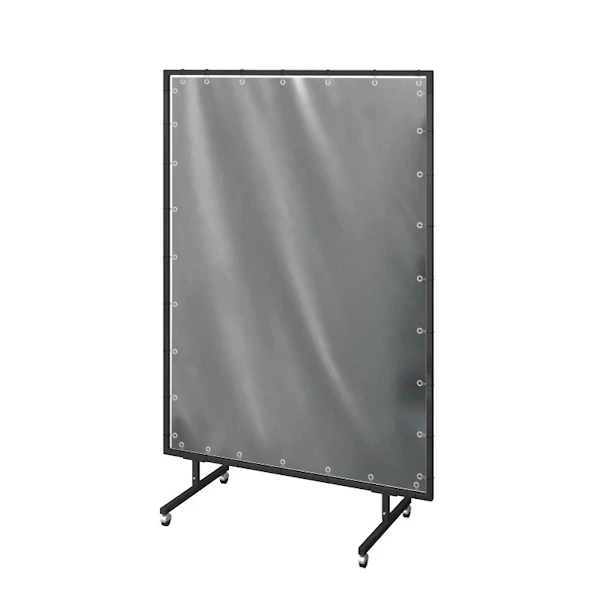

The divider screens can form a single separation partition, a two-sided enclosure, three-sided enclosure, or four-sided enclosure along with multiple other configurations. We can custom build this portable barrier wall with strong, heavy duty steel hardware, locking casters, and laser rated material. An excellent protection option in a small laser environment.
Technical Parameters
Protect wavelength | 1030 – 1400nm |
Material | Specially coated composite materials (High temperature silicone layer on both sides + glass fiber fireproof cloth in the middle) |
Available for | 1060 – 1080nm |
Transmittance | 0% |
LB-Rating | 1030 – 1400nm DIR AB5 |
Thickness | 1.3±0.05mm |
Standard Size | 1.5*2M |
PEL | 300W/cm² |
Application | Fiber laser protection |
