3D Dynamic Focus Laser Marking Machine

3D dynamic focus laser marking machine adopt imported core components, with high-speed, high precision 3D galvo, and with our 3D specified software and control system, it can engrave on any curved workpieces in a fine process, there is no off-focus problem.

It can also adjust focus length any time for deep engraving, which makes process efficiency and marking quality much better than traditional 2D fiber laser marking machine.

We make real 3D marking function come true, leading a new era of laser processing.

Electric up/down Z-axis makes focusing more automatical.

Features of The 3D Laser Marking Machine

Subvert traditional 2D marking mode. It can engrave many different 3D shapes, for example:slope,cylinder,cone,ball,and so on.

Amazing huge central angle marking .The max central angle can be reach 117 degree on cylinder.

Perfectly present target graphics on work pieces,avoid deforming such as elongation, slope.

The border won’t be “ignored”. Everywhere is marked uniformly

Details show ingenuity, no matter observing from any angles, it is exquisite,perfect.

Simple and easy is better!The software fully developed by ourselves, it is easy to learn and use. What you see is what you get.

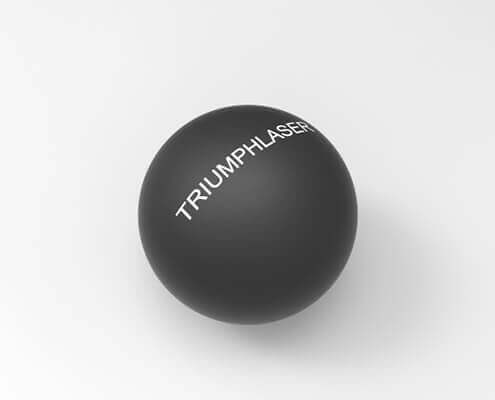

spherical laser marking machine
spherical laser marking machine

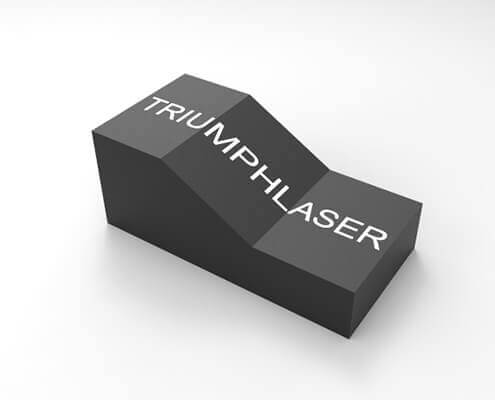

Height difference laser marking machine
Height difference laser marking machine
Cylindrical laser marking machine
Cylindrical laser marking machine

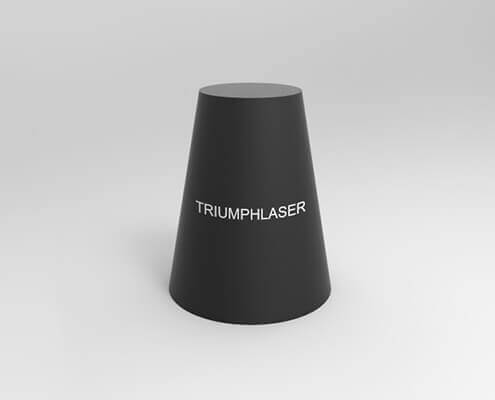

Cone laser marking machine
Cone laser marking machine

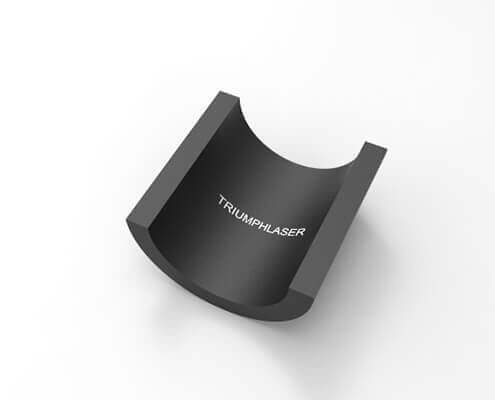

Concave laser marking machine
Concave laser marking machine

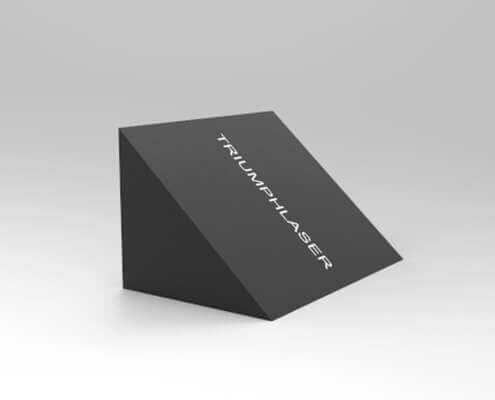

Bevel laser marking machine
Bevel laser marking machine

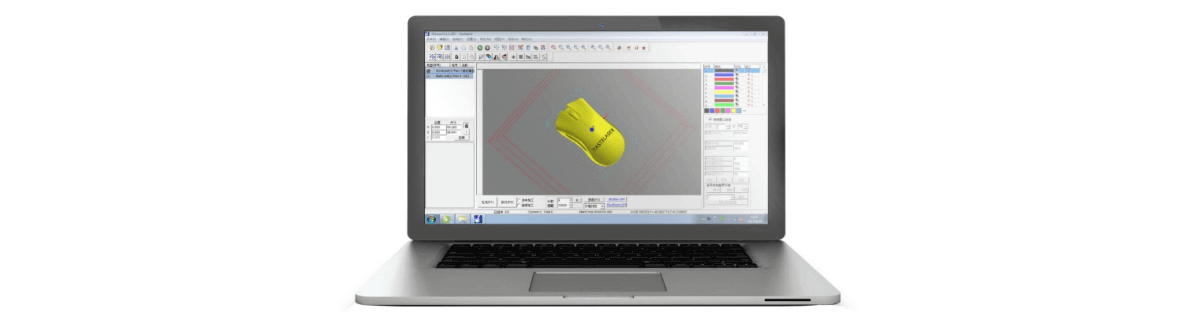

3D Laser Marking Software

No need to manually adjust the focal length, alignment and other complex processes. With unique control system, different height surfaces of workpieces are automatically marked at a time.

3D marking software

Professional software

The user friendly operation interface of our 3Dlaser software kit makes operation flexible and gradually offers feasibility of efficient flexible processing.

Technical Parameters

Laser Power30W/50W
Working Area70X70mm/110X110mm/150X150mm
laser wavelength1064nm
Frequency1KHz~400KHz
Graphic Format SupportedSTL,PLT, DXF, DWG,AI, SVG, and EPS， JPG, JPEG,PNG, BMP, ICO, EMF and WMF.
Laser Module Life>100000 hours
Power Supply220V±10% 50HZ or 110V±10% 60HZ
Marking Depthadjustable according to materials
Color Separation Yes
OptionRotary/F-theta scan lens/Laser protection glasses/Smoke purify system
Machine Size90×62×147cm(35.43″×24.41″×57.87″)
Packing Size110×72×165cm(43.3″×28.3″×65″)
Gross Weight204kg

Frequently Asked Questions

“Laser marking” stands for marking or labeling of work pieces and materials with a laser beam. In this regard, different processes are distinguished, such as engraving, removing, staining, annealing and foaming. Depending on the material and the quality requirement, each of these procedures has its own advantages and disadvantages.

Metals:Stainless steel, aluminum, gold, silver, titanium, bronze, platinum or copper

Plastics:ABS, polycarbonate, polyamide, PMMA or plastics with laser additives

Other materials:Foils and films, Laminates, Paints

All metals can be engraved into with some depth; however, some metals are more amenable to depth engraving. Softer aluminum material will engrave with depth with only a few passes. The best way to test your material is with our Applications Lab.
