Portable Fiber Laser Marking Machine

TR-F20M Marking For Metal &Plastic metarials

Portable fiber Laser marking machine TR-F20M adopts the third generation (the most advanced) solid-state fiber laser to create the super fine effect of marking. This model is compact structure, no pollution, no optical power coupling loss, air cooling, high efficiency and stability, its life is more than 100000 hours. Fiber Laser engraver output power:20W. The software is easy to use and can work with any content such as graphic,charters,letters,barcode,qrcode etc.It can widely used in various metal and some non-metallic surface to create the permanent mark.

Features of The Fiber Laser Marking Machine

portable fiber laser marking machine F20M

Low costs of maintenance

The built-in fiber laser source is practically maintenance free and absolutely reliable. The energy consumption of the laser markers is very low. Costs for consumables, spare parts or laser machine maintenance do not incur.

High-speed laser marking

The Portable laser marking machine has been developed for marking large quantities of small- to medium-sized parts. The laser marking machine is able to mark pens, usb-sticks or data plates in only a few seconds.

Simple operation

The software supports almost all common file formats, do not need to understand any programming language, simply set a few parameters can start marking.

Double red positioning

Two red light to help you easily be able to align the correct focal length，Only need to adjust the height of the table until the two red light coincidence.

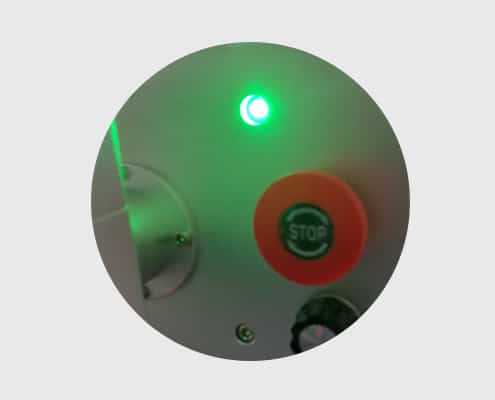

Laser light

Only the Triumph Laser has safety precautions. When there is a laser out, the laser light will light up.

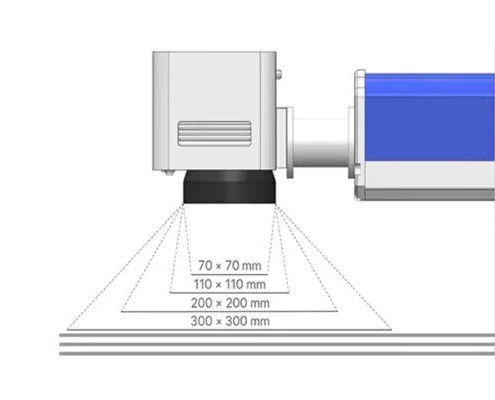

Various Diffrent Size

The laser marking area have 70mm/110/150mm/200mm.you can choose different F-theta scan lens for different laser working area.

Foot switch

A large number of repeated marking the same object, do not need to use the computer every time to start marking, just press the foot switch can be

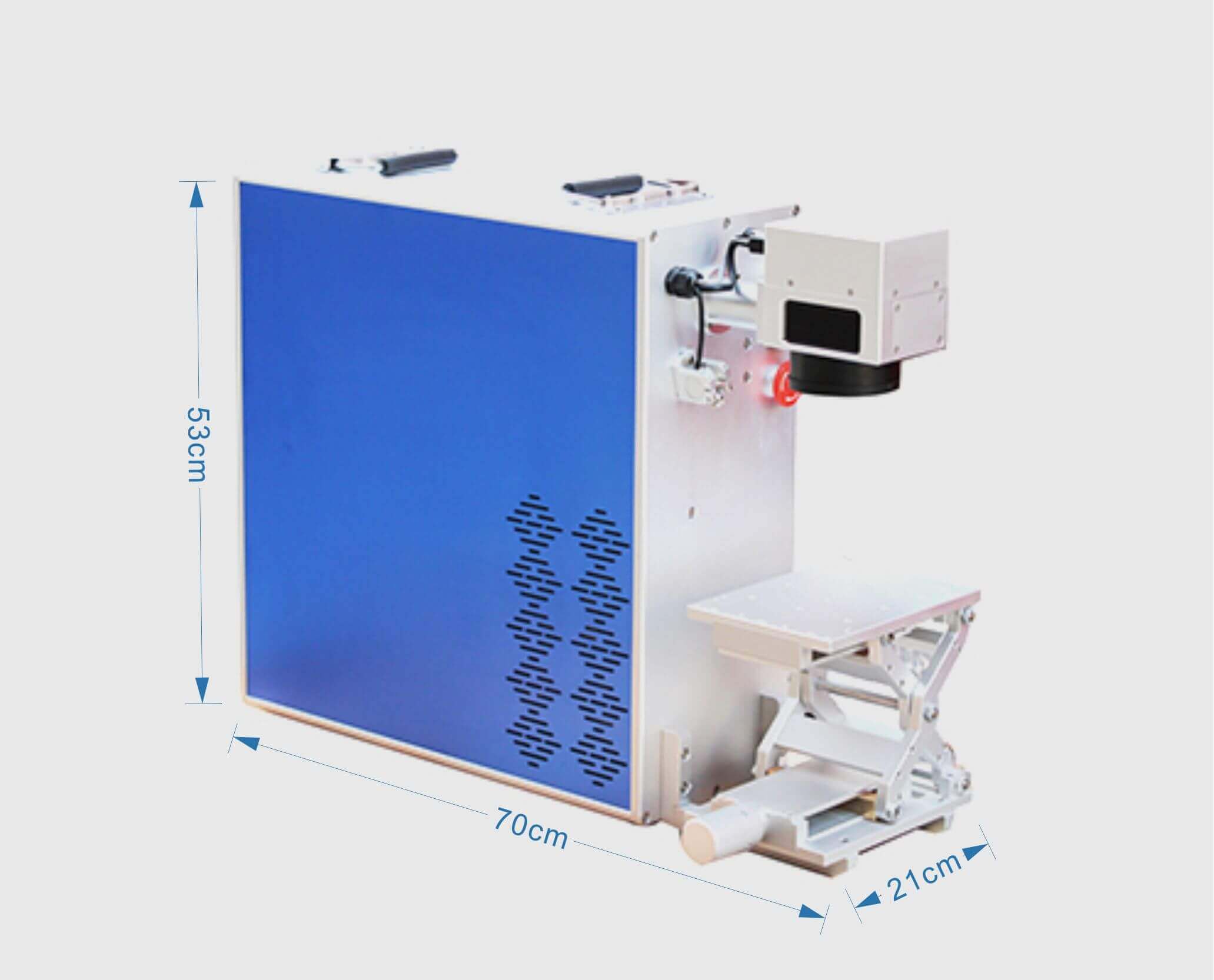

The machine occupies a small place

The machine size is only the host computer so big, you can put any place you want to put, very convenient

Machine Application Scope And Materials

Electronic and communication products, IC products, electric lines, cable computer components and electric appliance.Every kind of precision parts,hardware tools,instrument appliance,aviation and spaceflight appliance.Jewelry, garments, instruments, gifts, office devices, brand scutcheon, sanitary ware appliance.Dishware ,food ,drinking,smoking and alcohol,etc.

Electronic industry

Laser craft

Jewelry industry

Hardware industry

Stationery industry

Precision parts industry

Kitchenware

Mobile phone industry

Sample Display

How It Works

We have some portable fiber laser marking machine videos to help you understand how it works

Standard Accessories

Machine

Laptop

Guiding Video

Foot switch

Wrench

Test material

Power cable

USB cable

Optional Configuration

Rotary marking attachment
view more

F-theta scan lens
view more

Laser protection glasses
view more

Smoke purify system
view more

X/Y adjustable table
view more

Rotary for ring marking
view more

Technical Parameters

Laser Power	20W/30W
Working Area	70X70mm/110X110mm/150X150mm
laser wavelength	1064nm
Frequency	1KHz~400KHz
Graphic Format Supported	bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
Laser Module Life	>100000 hours
Power Supply	220V±10% 50HZ or 110V±10% 60HZ
Marking Depth	adjustable according to materials
Color Separation	Yes
Option	Rotary/F-theta scan lens/Laser protection glasses/Smoke purify system
Packing Size	83×41×70cm(32.7″×16.1″×27.6″)
Gross Weight	65kg

Frequently Asked Questions

What is laser marking?

“Laser marking” stands for marking or labeling of work pieces and materials with a laser beam. In this regard, different processes are distinguished, such as engraving, removing, staining, annealing and foaming. Depending on the material and the quality requirement, each of these procedures has its own advantages and disadvantages.

What materials can be marked with a laser?

Metals:Stainless steel, aluminum, gold, silver, titanium, bronze, platinum or copper

Plastics:ABS, polycarbonate, polyamide, PMMA or plastics with laser additives

Other materials:Foils and films, Laminates, Paints

How deep can it engrave into metal?

All metals can be engraved into with some depth; however, some metals are more amenable to depth engraving. Softer aluminum material will engrave with depth with only a few passes. The best way to test your material is with our Applications Lab.

How do I get more information on the lasers?

Fill out the form and we’ll send you laser engraved and cut samples and a full product line brochure.
