• Laser Cutting Machine TR-1390

    The most populer laser cutting machine model

    laser cutting machine 1390 banner

CO2 Laser Cutting Machine

This series of machine structure is stable, many models, to meet a variety of format cutting and engraving. Mainly used in industrial production, the most common applications are acrylic, wood, leather, cloth and other materials.

This laser cutting machine especially good for customers who need to mass produce their products. There’re different sizes of laser cutters for your choice.

Applicable Materials
Cloth,leather, wool, fur, acrylic, plexiglass, wood, plastic, resin,rubber, bamboo product,resin,paper,carton and other non-metal materials.
Applicable Industry
The machine is suitable for garment,leather, package and printing,advertisement decoration, building upholster, art gift, computer embroidery, paper product, acrylic product, middle density board etc. non-metal sheet precision cutting and other industries.

user manual EzCad Manualcatalogue

Features of CO2 Laser Cutting Machine

three color alarm lamp device

Alarm system

Three color alarm lamp, show laser machine work state, tell when the job is done, and find machine faults in time to avoidunnecessary loss.

Auto blowing system

Auto blowing system

Triumph self-developed auto blowing system will ensure air pump blow only when machine works.Which effectively saves electricity and extend the service life of air pump.

Auto exhausting system

The exhaustor will work automatically when laser machine start to work, save electricity and extend the lifetime of of exhaustor.

How It Works

We have some laser  cutting machine videos to help you understand how it works

Technical Parameters

ModelTR-1390/TR-960/TR-1080/TR-1280/TR-1610/TR-1812
Laser Power80W/100W/130W/150W/300W
Working Area1300X900mm/900X600mm/1000X800mm/1200X800mm/1600X1000mm/1800X1200mm
Cooling TypeWater cooling
Laser Output Control0-100% Set by software
Display PanelLCD panel showing current file,total working time,laser power,speed etc
Power Supply220V±10% 50HZ or 110V±10% 60HZ
Power Supply220V±10% 50HZ or 110V±10% 60HZ
Compatible softwareCoreldraw,Autocad,Illustrator
Color Separation Yes
Operating ModesOptimized raster, vector, and combined mode
Computer InterfaceEthernet and USB Connection
Compatible Operating SystemsWindows XP/2000/Vista/7/8/10
Resolution(DPI)User controlled from 100 to 500DPI
Color SeparationYes
Machine partsWater chiller, Air pump,Smoke pipe, Exhaust fan,80W(Standard configuration)

Standard Accessories

Machine

laser cutter TR1390

Water chiller

water chiller

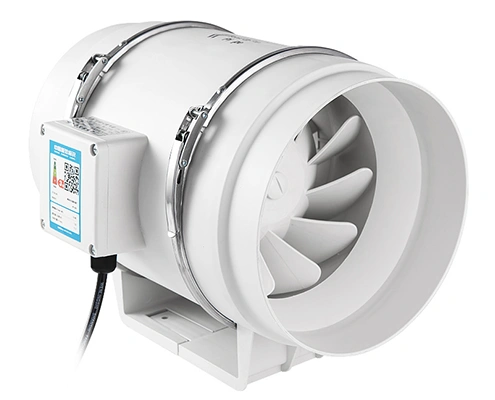

Exhaust fan

Air pump

triumphlaser Automatic blowing system

Upgrades For Pro Laser Cutting Machine

metal laser cutting head

Metal cutting system

ccd laser cutting

Vision cutting system

1390D double laser cutter

Double Head system
